Make maintenance a profitable part of your production with this vibration meter that provides results instantly and automatically and evaluates them against ISO standards with a clear, intuitive indication of vibration severity. In addition, with a 2.4" (61 mm) color screen and push-button operation, it is designed for ease of use.
Make maintenance a profitable part of your production with this vibration meter that provides results instantly and automatically and evaluates them against ISO standards with a clear, intuitive indication of vibration severity. In addition, with a 2.4" (61 mm) color screen and push-button operation, it is designed for ease of use.
Combines ease of use with cost-effectiveness and durability, this vibration meter provides quick and accurate on-site vibration checks and a proactive approach to maintenance that is economically feasible for everyone. Effectively monitor vibration levels in most rotating machinery, such as electric motors, fans, and pumps, in various industrial environments.
Features
Applications
| Frequency Range | 10 to 1000 Hz |
| Readings | RMS/peak/peak-to-peak |
| Measuring Range (sinus signal and 100 mV/g accelerometer) | Velocity RMS: 100 mm/s (4 ips) at 80 Hz Acceleration RMS: 100 m/s² (10 g) at 10 to 1000 Hz Displacement RMS: 100 µm (4 mil) at 80 Hz |
| Spectrum | Linear, 200/400/800 lines, Hanning window, Hz/cpm, zoom, RPM markers |
| Time Signal | 512/1024/2048 samples, zoom, marker |
| Condition | Evaluation: According to ISO 2372 and ISO 10816 Part 2, 3, 4 >600 rpm Indication: Green, yellow, and red symbols |
| Transducers | Internal: Accelerometer type MEMS External: Vibration transducer or IEPE (ICP®) type transducers with voltage output |
| Connector | Input: Mini coax, for external transducer (sold separately) Output: mini-B USB |
| General Functions | Battery status Transducer check Metric or imperial units Language independent menus Storage of up to 10 measuring samples |
| Display | 2.4" (61 mm) color TFT LCD display |
| Keypad | Sealed, snap action |
| Protection Class | IP65 |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Material and Casing | Copolyester/TPE |
| Power Supply | 3.63 V Lithium-Ion, USB rechargeable Battery life: >25 hours of normal use |
| Dimensions | 8.1 x 2.9 x 1.6" (207 x 74 x 41 mm) |
| Weight | 11.8 oz (335 g) |

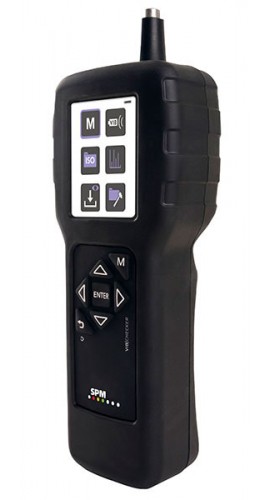

Click on a category to view a selection of compatible accessories with the SPM VibChecker Vibration Meter with built-in probe, 10 to 1000 Hz.
| Frequency Range | 10 to 1000 Hz |
| Readings | RMS/peak/peak-to-peak |
| Measuring Range (sinus signal and 100 mV/g accelerometer) | Velocity RMS: 100 mm/s (4 ips) at 80 Hz Acceleration RMS: 100 m/s² (10 g) at 10 to 1000 Hz Displacement RMS: 100 µm (4 mil) at 80 Hz |
| Spectrum | Linear, 200/400/800 lines, Hanning window, Hz/cpm, zoom, RPM markers |
| Time Signal | 512/1024/2048 samples, zoom, marker |
| Condition | Evaluation: According to ISO 2372 and ISO 10816 Part 2, 3, 4 >600 rpm Indication: Green, yellow, and red symbols |
| Transducers | Internal: Accelerometer type MEMS External: Vibration transducer or IEPE (ICP®) type transducers with voltage output |
| Connector | Input: Mini coax, for external transducer (sold separately) Output: mini-B USB |
| General Functions | Battery status Transducer check Metric or imperial units Language independent menus Storage of up to 10 measuring samples |
| Display | 2.4" (61 mm) color TFT LCD display |
| Keypad | Sealed, snap action |
| Protection Class | IP65 |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Material and Casing | Copolyester/TPE |
| Power Supply | 3.63 V Lithium-Ion, USB rechargeable Battery life: >25 hours of normal use |
| Dimensions | 8.1 x 2.9 x 1.6" (207 x 74 x 41 mm) |
| Weight | 11.8 oz (335 g) |
Click on a category to view a selection of compatible accessories with the SPM VibChecker Vibration Meter with built-in probe, 10 to 1000 Hz.
