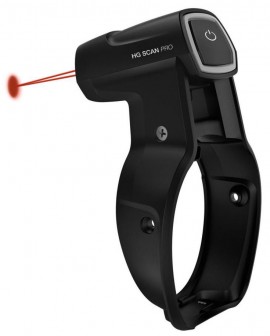

Specifically designed to ensure the correct airflow and temperature at the point of a laser, this laser-enabled temperature scanner uses infrared technology to measure the heat radiating off an object. In addition, it comes with acoustic and visual temperature alarms and is compatible with the HG 2620 E professional heat gun.
Specifically designed to ensure the correct airflow and temperature at the point of a laser, this laser-enabled temperature scanner uses infrared technology to measure the heat radiating off an object. In addition, it comes with acoustic and visual temperature alarms and is compatible with the HG 2620 E professional heat gun.
The integrated laser technology ensures the ideal distance from the workpiece. And being perfectly compatible with our top HG 2620 E and HG 2520 E tools, all relevant data are intelligently communicated between scanner and hot air tool. The particularly clever way to complement your set of tools.
Features
Applications
| Operating Voltage | 15 V DC |
| Response Time | 500 m/s |
| Spectrum | 8 to 14 µ |
| Emissivity | 0.1 to 0.99 |
| Resolution | Farenheit: 10° Celcius: 10° |
| Working Distance | 4" (10 cm) |
| IR Measurement Area | 10:1 |
| Environmental Conditions | Operating temperature: 32 to 122°F (0 to 50°C) Storage temperature: 14 to 140°F (-10 to 60°C) Temperature range: 32 to 572°F (0 to 300°C) Operating humidity: 10% to 90% RH Storage humidity: < 80% RH |
| Accuracy* | ±3.6°F (±2°C) or ±5% of the temperature measured *Accuracy at an ambient temperature of approximately 25°C and maintaining the optimal distance from the object being measured. |
| Dimensions | 3.9 x 3.7 x 6" (99 x 95 x 153 mm) |
| Weight | 0.26 lbs (4.16 oz) |
Click on a category to view a selection of compatible accessories with the Steinel HG Scan Pro 2620 E for the HG 2620 E industrial heat gun.
