A dedicated receiver unit for the circuit mapper systems, this is designed to accurately identify and trace circuits with ease.
A dedicated receiver unit for the circuit mapper systems, this is designed to accurately identify and trace circuits with ease.

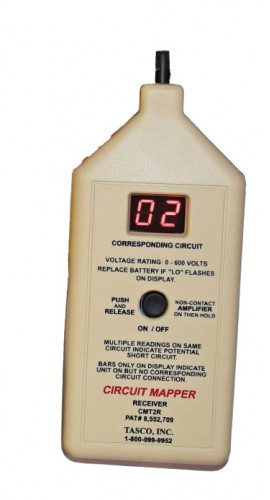

The CMT2R is the receiver portion of the Circuit Mapper System. Multiple receivers can be used simultaneously with the CMT24DS, CMT42DS or CMT84DS systems. Extra receivers are a great way to save even more time by allowing more than one person to be tracing using multiple receivers with the transmitter(s) hooked up at the panelboard.
Features
| Power | Standard 9 VDC Alkaline battery (Included) |
| Current Draw | 35 mA average |
| Signal Recognition | Digital Pulse Code |
| Operating Voltage | 0 to 600 VAC/VDC |
| Operating Temperature | 0 to 120°F (-18 to 50°C) |
| Dimensions | 6.5 x 2.7 x 0.9" (105 x 69 x 23 mm) |
| Weight | 0.5 lbs (0.23 kg) |
| Power | Standard 9 VDC Alkaline battery (Included) |
| Current Draw | 35 mA average |
| Signal Recognition | Digital Pulse Code |
| Operating Voltage | 0 to 600 VAC/VDC |
| Operating Temperature | 0 to 120°F (-18 to 50°C) |
| Dimensions | 6.5 x 2.7 x 0.9" (105 x 69 x 23 mm) |
| Weight | 0.5 lbs (0.23 kg) |
