Ideal for highly hazardous conditions, an explosion-proof environment, and features a highly rugged flameproof housing for corrosive applications.
Ideal for highly hazardous conditions, an explosion-proof environment, and features a highly rugged flameproof housing for corrosive applications.

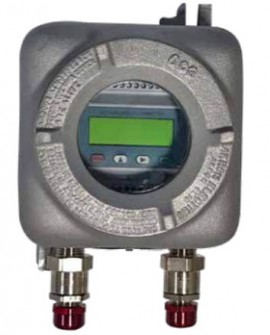

The explosion-proof ultrasonic clamp-on flowmeter is suitable for hazardous areas, abrasive and corrosive applications.
Features
Applications
| Accuracy | ±1% of Reading |
| Velocity | ±0.03 to ±100 ft/s (±0.01 to ±30m/s) |
| Repeatability | 0.2% |
| Measurement Period | 0.5 Seconds |
| Measurement Principle | Transit-time measurement principle |
| Display | LCD with backlight. 2 x 20 letters |
| Output | Modbus RS485, 4-20 mA, Pulse |
| Input | Two three wire system PT100 platinum resistor input loop. For BTV process monitoring |
| Power | 8 to 36 VDC |
| Power Consumption | Less than 1.5 W |
| Environment Temperature | -22 to 176°F (-30 to 80°C) |
| Environment Humidity | 85% RH |
| Protection Class | IP65; Class I Div II |
| Process Temperature | -40 to 320°F (-40 to 160°C) |
| Pipe Size | 0.5 to 28" (15 to 700 mm) |
| Accuracy | ±1% of Reading |
| Velocity | ±0.03 to ±100 ft/s (±0.01 to ±30m/s) |
| Repeatability | 0.2% |
| Measurement Period | 0.5 Seconds |
| Measurement Principle | Transit-time measurement principle |
| Display | LCD with backlight. 2 x 20 letters |
| Output | Modbus RS485, 4-20 mA, Pulse |
| Input | Two three wire system PT100 platinum resistor input loop. For BTV process monitoring |
| Power | 8 to 36 VDC |
| Power Consumption | Less than 1.5 W |
| Environment Temperature | -22 to 176°F (-30 to 80°C) |
| Environment Humidity | 85% RH |
| Protection Class | IP65; Class I Div II |
| Process Temperature | -40 to 320°F (-40 to 160°C) |
| Pipe Size | 0.5 to 28" (15 to 700 mm) |
