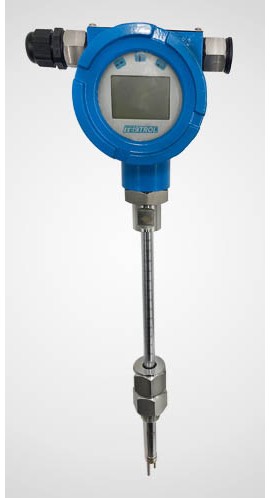

Tek-Trol 1700B-C-4-1-T-2-1-8-1 Thermal Mass Flowmeter

Model: 1700B-C-4-1-T-2-1-8-1

Designed based on constant power measuring method and has less problem of zero-off.

Designed based on constant power measuring method and has less problem of zero-off.

Sale Price $3976.58 USD
Regular Price $4299.00 USD
Availability 2 to 3 Weeks
Quantity

Tek-Trol 1700B-C-4-1-T-2-1-8-1 Offers

The thermal mass flow meter has self diagnostic function.

Features

  • Dual line LCD display with 3 setting button
  • Wide Turndown ratio 100:1
  • No pressure loss and it can be used on pipes from 1 to 20"
  • It has more compact design, which means smaller enclosure and thinner insertion tube probe
  • Measure mass flow and standard flow directly
  • It has high accuracy data acquisition circuit
  • High effective design of power supply
  • It can be installed/removed without stopping process

Applications

  • Tek-Thermal 1700B is specially used for air and nitrogen (N2) application, such as compressed air, venting air, aeration, process protection nitrogen (N2), and combustion air
  • It is used in high pressure applications

Tek-Trol 1700B-C-4-1-T-2-1-8-1 Specifications

Media Capability Air, Nitrogen (N2)
Pipe Diameter 1 to 20"
Flow Velocity Range 0.98 to 98 ft/sec or 1.9 to 196 ft/sec or 2.9 to 295 ft/sec
Accuracy ±0.5% of Reading
Maximum Pressure 232 PSI
Temperature of Medium -40 to 302°F (-40 to 150°C)
Power Supply 13.5 to 42 VDC or 85 to 265 VAC
Response Time 1 second
Output Pulse and 4-20 mA
Communication RS485 or HART
Display Indication 4 to 20 mA or Pulse
Digital Output Mass flow, Volume flow in normal condition, Total flow, Temperature of medium, Velocity
Ingress Protection IP65
Click here for complete specifications on the Tek-Trol 1700B-C-4-1-T-2-1-8-1

What's included with the Tek-Trol 1700B-C-4-1-T-2-1-8-1

  • Tek-Trol 1700B-C-4-1-T-2-1-8-1 Thermal Mass Flowmeter

Ask a question about Tek-Trol 1700B-C-4-1-T-2-1-8-1 Thermal Mass Flowmeter

Customer Reviews for the Tek-Trol 1700B-C-4-1-T-2-1-8-1

Tek-Trol 1700B-C-4-1-T-2-1-8-1 Offers

The thermal mass flow meter has self diagnostic function.

Features

  • Dual line LCD display with 3 setting button
  • Wide Turndown ratio 100:1
  • No pressure loss and it can be used on pipes from 1 to 20"
  • It has more compact design, which means smaller enclosure and thinner insertion tube probe
  • Measure mass flow and standard flow directly
  • It has high accuracy data acquisition circuit
  • High effective design of power supply
  • It can be installed/removed without stopping process

Applications

  • Tek-Thermal 1700B is specially used for air and nitrogen (N2) application, such as compressed air, venting air, aeration, process protection nitrogen (N2), and combustion air
  • It is used in high pressure applications
Show More...

Tek-Trol 1700B-C-4-1-T-2-1-8-1 Specifications

Media Capability Air, Nitrogen (N2)
Pipe Diameter 1 to 20"
Flow Velocity Range 0.98 to 98 ft/sec or 1.9 to 196 ft/sec or 2.9 to 295 ft/sec
Accuracy ±0.5% of Reading
Maximum Pressure 232 PSI
Temperature of Medium -40 to 302°F (-40 to 150°C)
Power Supply 13.5 to 42 VDC or 85 to 265 VAC
Response Time 1 second
Output Pulse and 4-20 mA
Communication RS485 or HART
Display Indication 4 to 20 mA or Pulse
Digital Output Mass flow, Volume flow in normal condition, Total flow, Temperature of medium, Velocity
Ingress Protection IP65
Click here for complete specifications on the Tek-Trol 1700B-C-4-1-T-2-1-8-1

What's included with the Tek-Trol 1700B-C-4-1-T-2-1-8-1

  • Tek-Trol 1700B-C-4-1-T-2-1-8-1 Thermal Mass Flowmeter

Ask a question about Tek-Trol 1700B-C-4-1-T-2-1-8-1 Thermal Mass Flowmeter

Customer Reviews for the Tek-Trol 1700B-C-4-1-T-2-1-8-1
