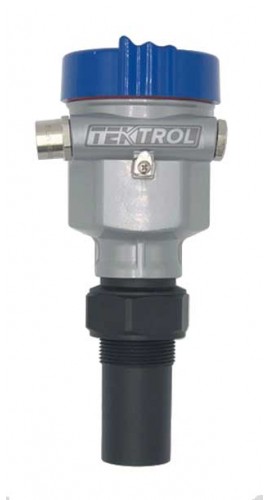

Tek-Trol Tek-Sound 4200B Two Wire Ultrasonic Level Transmitter, 0.5 to 13', 1.5" NPT Process Connection

Model: 4200B-P-B-B-A-N-A-1

Utilizes enhanced ultrasonic technology to measure liquid level in various applications with superior accuracy and reliability. It features a measuring range of 0.5 to 13 feet.

Utilizes enhanced ultrasonic technology to measure liquid level in various applications with superior accuracy and reliability. It features a measuring range of 0.5 to 13 feet.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Tek-Trol 4200B-P-B-B-A-N-A-1 Offers

The two wire ultrasonic level transmitter utilizes enhanced ultrasonic technology to measure liquid level in various applications with superior accuracy and reliability.

Features

  • The advanced microprocessor and unique Echo Discovery processing technology, the ultrasonic level instruments can be used under various complex conditions.
  • The false echo storage function assures that the instrument can detect the right echo even with the presence of multiple false echoes and present accurate measurement results eventually.
  • The built-in temperature sensor inside the transducer can complete temperature compensation for measurement results.
  • Ultrasonic transducer has adopted patented sonic matching technology, which helps it strengthen its emission power, enhance the signal intensity and eventually achieve accurate measurement.

Applications

  • Water and wastewater industry
  • Pharmaceutical industry
  • Chemical industry
  • Beverage industry

Measurement Principle

Ultrasonic pulses generated by the transducer (antenna) system travel at the speed of sound toward the target medium. These pulses are reflected by the surface of the medium and received by the transducer system again. Due to the fact that the measurable time lapse between pulse emission and reception by antenna is proportional to the distance between antenna and highest level of target medium, the principle of ultrasonic level instrument can be illustrated as the following equation:
S = C x T/2, S: distance, C: velocity of sound, T: time lapse.

Tek-Trol 4200B-P-B-B-A-N-A-1 Specifications

Measuring Range 0.5 to 13' (0.15 to 4 m)
Accuracy ±0.25%
Resolution 0.019" (0.5 mm)
Blanking Zone 6" (10 cm)
Beam width 2" (5 cm)
Process Mount 1.5" NPT
Material for Transducer Housing PTFE
Ambient Temperature -40 to 158°F (-40 to 70°C)
Signal Invert 4 to 20 mA, 20 to 4 mA
Protection Level IP66, IP67
Enclosure Material Power Coated Aluminum
Click here for complete specifications on the Tek-Trol 4200B-P-B-B-A-N-A-1

What's included with the Tek-Trol 4200B-P-B-B-A-N-A-1

  • Tek-Trol Tek-Sound 4200B Two Wire Ultrasonic Level Transmitter, 0.5 to 13', 1.5" NPT Process Connection
