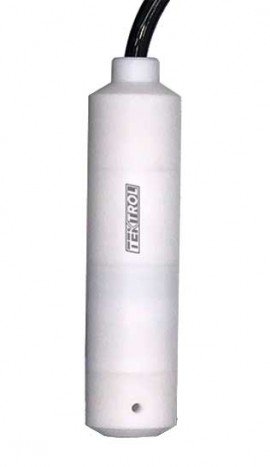

Designed for continuous submersion in aggressive fluids, this submersible level transmitter uses a rugged ceramic pressure sensor encased in PTFE housing that provides excellent corrosion resistance. Features a pressure range of 10 psig, 40' polyurethane cable, and is precision-engineered to fit most level measurement applications.
Designed for continuous submersion in aggressive fluids, this submersible level transmitter uses a rugged ceramic pressure sensor encased in PTFE housing that provides excellent corrosion resistance. Features a pressure range of 10 psig, 40' polyurethane cable, and is precision-engineered to fit most level measurement applications.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
This submersible level transmitter features long-term stability. It facilitates simple installation, easy cleaning and years of trouble-free service with almost no maintenance. The device guarantees stability and reliability in harsh environments.
Features
Applications
| Pressure Range | 10 psig |
| Pressure Type | Gauge |
| Over Pressure | 150% FS |
| Accuracy | ±0.5% FS (max.) |
| Temperature Coefficient-Zero | ±0.011% FS (typ.), ±0.016% FS (max.) |
| Temperature Coefficient-Span | ±0.011% FS (typ.), ±0.016% FS (max.) |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4 to 20 mA |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | For current output: RL≤(Vs-15)/0.02 Ω For voltage output: RL≥10 kΩ |
| Maximum Current | 4 to 20 mA: 22.8 mA |
| Consumption | 0.5 to 4.5 VDC: 2 mA RS-485: 6 mA |
| Response Time | ≤10 ms |
| Vibration | 10 g-force (20 to 2000 Hz) |
| Shock | 100 g-force (10 ms) |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | PTFE: 32 to 140°F (0 to 60°C) |
| Operating Temperature Range | PTFE: -20 to 160°F (-29 to 71°C) |
| Storage Temperature Range | -40 to 257°F (-40 to 125°C) |
| Maximum Specific Gravity | 2.2 |
| Housing | PTFE |
| Cable | Polyurethane |
| Diaphragm | Ceramic (AI2O3, 96%) |
| O-Ring | FKM (Flourine rubber) |
| Net Weight | 0.91 lb (412 g) |
