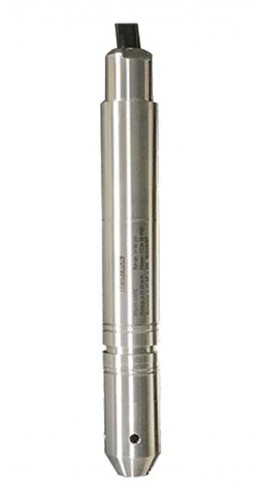

Features a diameter of 0.7" (19 mm) making it ideal for narrow conduit installations, along with a rugged stainless steel body. It has a diaphragm protection cap, customizable cable lengths and a vent tube for atmospheric pressure compensation. Provides a pressure range of 10 psig, and includes a 75' polyurethane cable.
Features a diameter of 0.7" (19 mm) making it ideal for narrow conduit installations, along with a rugged stainless steel body. It has a diaphragm protection cap, customizable cable lengths and a vent tube for atmospheric pressure compensation. Provides a pressure range of 10 psig, and includes a 75' polyurethane cable.
The piezoresistive sensor is placed in a slim outer body that fits easily into boreholes, wells and slender pipes. No maintenance, high accuracy, and long-term stability make it a perfect choice for narrow conduit applications.
Features
Applications
| Pressure Range | 10 psig |
| Pressure Type | Gauge (vented) |
| Over Pressure | 150% FS |
| Accuracy | 0.25% FS |
| Temperature Coefficient-Zero | ±0.75% FS (typ.), ±1.5% FS (max.) overcompensated temperature range |
| Temperature Coefficient-Span | ±0.75% FS (typ.), ±1.5% FS (max.) overcompensated temperature range |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4 to 20 mA |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | For current output: RL<(Vs-12)/0.02A For voltage output: RL>10 kΩ |
| Vibration | 10g-force (20 to 2000 Hz) |
| Shock | 100g-force (10 ms) |
| Cycles | 10 x 106 cycles |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | 32 to 140°F (0 to 60°C) |
| Operating Temperature | 32 to 160°F (0 to 70°C) |
| Storage Temperature | -40 to 257°F (-40 to 125°C) |
| Housing | 304 SS |
| Cable | Polyurethane |
| Diaphragm | 316L SS |
| Seal Ring | Viton |
| Oil Filling | Silicone oil |
| Net Weight | 0.49 lb (225 g) |
| Pressure Range | 10 psig |
| Pressure Type | Gauge (vented) |
| Over Pressure | 150% FS |
| Accuracy | 0.25% FS |
| Temperature Coefficient-Zero | ±0.75% FS (typ.), ±1.5% FS (max.) overcompensated temperature range |
| Temperature Coefficient-Span | ±0.75% FS (typ.), ±1.5% FS (max.) overcompensated temperature range |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4 to 20 mA |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | For current output: RL<(Vs-12)/0.02A For voltage output: RL>10 kΩ |
| Vibration | 10g-force (20 to 2000 Hz) |
| Shock | 100g-force (10 ms) |
| Cycles | 10 x 106 cycles |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | 32 to 140°F (0 to 60°C) |
| Operating Temperature | 32 to 160°F (0 to 70°C) |
| Storage Temperature | -40 to 257°F (-40 to 125°C) |
| Housing | 304 SS |
| Cable | Polyurethane |
| Diaphragm | 316L SS |
| Seal Ring | Viton |
| Oil Filling | Silicone oil |
| Net Weight | 0.49 lb (225 g) |
