Designed with a clog-free silicon piezoresistive sensor to determine liquid level without being affected by debris, allowing for precise level measurement. It is capable of real-time level measurement. Provides a pressure range of 10 psig, and includes a 40' PTFE cable.
Designed with a clog-free silicon piezoresistive sensor to determine liquid level without being affected by debris, allowing for precise level measurement. It is capable of real-time level measurement. Provides a pressure range of 10 psig, and includes a 40' PTFE cable.

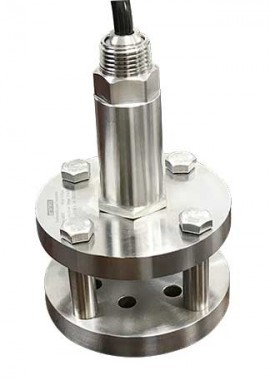

The Tek-Sub 4800D is exclusively designed for slurry and wastewater applications. Packaged in a stainless steel housing, the waterproof cable makes it ideal for long-term trouble-free service. The instantaneous level output is used for pump control to maintain the level or to report the real-time level status.
Features
Applications
| Pressure Range | 10 psig |
| Pressure Type | Gauge (vented) |
| Over Pressure | 150% FS |
| Accuracy | ±0.5% FS |
| Temperature Coefficient-Zero | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Temperature Coefficient-Span | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4 to 20 mA |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | RL<(Vs-12)/0.02A |
| Vibration | 10g-force (20 to 2000 Hz) |
| Shock | 100g-force (10 ms) |
| Cycles | 10 x 106 cycles |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | 32 to 12°F (0 to 50°C) |
| Operating Temperature | -4 to 158°F (-20 to 70°C) |
| Storage Temperature | -40 to 257°F (-40 to 125°C) |
| Media Compatibility | All media compatible with 316L SS |
| Housing | 304 SS |
| Cable | PTFE |
| Diaphragm | 316L SS |
| Oil Filling | Silicone oil |
| Weight | 8.8 lbs (4000 g) |
| Pressure Range | 10 psig |
| Pressure Type | Gauge (vented) |
| Over Pressure | 150% FS |
| Accuracy | ±0.5% FS |
| Temperature Coefficient-Zero | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Temperature Coefficient-Span | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4 to 20 mA |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | RL<(Vs-12)/0.02A |
| Vibration | 10g-force (20 to 2000 Hz) |
| Shock | 100g-force (10 ms) |
| Cycles | 10 x 106 cycles |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | 32 to 12°F (0 to 50°C) |
| Operating Temperature | -4 to 158°F (-20 to 70°C) |
| Storage Temperature | -40 to 257°F (-40 to 125°C) |
| Media Compatibility | All media compatible with 316L SS |
| Housing | 304 SS |
| Cable | PTFE |
| Diaphragm | 316L SS |
| Oil Filling | Silicone oil |
| Weight | 8.8 lbs (4000 g) |
