Teledyne LeCroy HDO4024A HD Oscilloscope, 4 Channel, 200MHz

Model: HDO4024A

Teledyne LeCroy HDO4024A HD Oscilloscope, 4 Channel, 200MHz-

Downloads:

More Teledyne LeCroy Products

Ask an Expert

Teledyne LeCroy HDO4024A HD Oscilloscope, 4 Channel, 200MHz

Model: HDO4024A

The HDO4000A Series features HD4096 technology that provides exceptional signal fidelity with 12-bit resolution and a superior oscilloscope experience to deliver faster time to insight. It is also known for the lowest noise, powerful toolbox options and MAUI; the most advanced user interface experience.

The HDO4000A Series features HD4096 technology that provides exceptional signal fidelity with 12-bit resolution and a superior oscilloscope experience to deliver faster time to insight. It is also known for the lowest noise, powerful toolbox options and MAUI; the most advanced user interface experience.

Your Price $15910.00 USD
Availability 8 to 9 Weeks
Quantity

Teledyne Lecroy HDO4024A Offers

Features

  • 4 analog channels
  • 12-bit ADC resolution, up to 15-bit with enhanced resolution
  • 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths
  • Long Memory – up to 50 Mpts
  • Multi-language User Interface
  • WaveScan - Search and Find
  • LabNotebook Documentation and Report Generation
  • History Mode
  • Spectrum Analyzer Mode
  • Power Analysis Software
  • 16 Digital Channel MSO option
  • Serial Trigger and Decode options
  • 12.1" WXGA multi-touch screen display
  • Easily control channels, trigger, math and measurements with the large multi-touch display and intuitive interface
  • Wide probe selection for power electronics, embedded electronics, and mechatronics applications
  • Debug complex embedded designs with integrated 16 channel mixed signal capability
  • Quickly locate analog or digital waveforms for runts, glitches or other anomalies with WaveScan
  • Capture many fast pulses in quick succession or events separated by long periods of time
  • Flexible analog and digital cross-pattern triggering across all 20 channels

HD4096 High Definition Technology

HD4096 high definition technology enables oscilloscopes to capture and display signals of up to 1 GHz with high sample rate and 16 times more resolution than other oscilloscopes. Waveforms captured and displayed on oscilloscopes with HD4096 technology are cleaner and crisper. Signal details often lost in the noise are clearly visible and easy to distinguish. It also enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis.

Applications

  • Analyze Circuits, Line-Power Harmonics, Power Conversion Devices
  • Data Storage Device Testing
  • Measuring Faults along Cable Connectors, Transmission Cables
  • Aviation
  • HAM Radio

Fonctions

WaveScan provides powerful isolation capabilities that hardware triggers can't provide. WaveScan allows searching analog, digital or parallel bus signal in a single acquisition using more than 20 different criteria. Or, set up a scan condition and scan for an event over hours or even days.

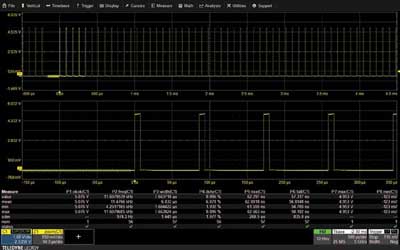

With many math functions and measurement parameters available, the HDO4000A can measure and analyze every aspect of analog and digital waveforms. By utilizing HD4096 technology, the HDO4000A measures 16 times more precisely than traditional 8-bit architectures. Additionally, the HDO4000A provides statistics, histicons and trends to show how waveforms change over time.

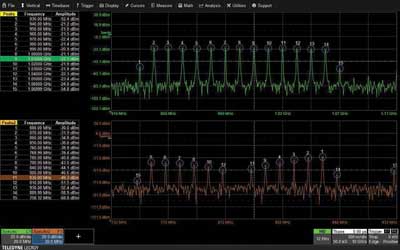

Get faster and better insight to the frequency content of any signal with use of the Spectrum Analyzer mode on the HDO4000A. This mode provides a spectrum analyzer style user interface with controls for start/stop frequency or center frequency and span. The resolution bandwidth is automatically set for best analysis or can be manually selected. Peak search automatically labels spectral components and presents frequency and level in an interactive table.
Quickly measure and analyze the operating characteristics of power conversion devices and circuits with the Power Analyzer option. Critical power switching device measurements, control loop modulation analysis, and line power harmonic testing are all simplified with a dedicated user interface and automatic measurements.

Teledyne Lecroy HDO4024A Specifications

Bandwidth 200MHz
Rise Time 1.75 ns typical
Input Channels 4
Vertical Resolution 12-bits; up to 15-bits with enhanced resolution (ERES)
Sensitivity 50Ω: 1mV/div - 1 V/div; 1MΩ: 1mV/div - 10V/div
DC Gain Accuracy ±(0.5%) Full Scale, offset at 0V
BW Limit 20MHz, 200MHz
Maximum Input Voltage 50Ω: 5 Vrms; 1MΩ: 400V max (DC + Peak AC ≤ 10kHz)
Input Coupling 50Ω: DC, GND; 1MΩ: AC, DC, GND
Input Impedance 50Ω ±2.0%, 1MΩ ±2.0% || 15 pF
Sample Rate (Single-Shot) 2.5 GS/s
Sample Rate (Repetitive) 125 GS/s
Click here for complete specifications on the Teledyne LeCroy HDO4024A

Teledyne Lecroy HDO4024A Offers

  • HDO4024A Oscilloscope
  • 4 passive probes (one for each channel)
  • AC power cord
  • Protective front cover
  • Getting Started Guide
  • Oscilloscope Security Certificate
  • Oscilloscope Registration Card
  • Calibration Document
