Achieve excellent signal clarity and performance with this fully-loaded four-channel oscilloscope featuring a 10.1" touch-screen color display and an analog bandwidth of 350 MHz. Complete with the 16 channel mixed-signal capability, this oscilloscope offers a sample rate of 5 GSa/s and 250 Mpts memory.
Achieve excellent signal clarity and performance with this fully-loaded four-channel oscilloscope featuring a 10.1" touch-screen color display and an analog bandwidth of 350 MHz. Complete with the 16 channel mixed-signal capability, this oscilloscope offers a sample rate of 5 GSa/s and 250 Mpts memory.
With a user-friendly front panel design, this oscilloscope features an innovative digital trigger system with high sensitivity low jitter and a minimum vertical input range of 500 μV/div.
Features
Applications
Tool for improved debugging
Bode plot
The bode plot application can control the waveform generator or function generator, to make Bode Plot measurements of passive or active components and circuits. The application scans the amplitude and phase response over frequency, making it possible to replace expensive network analyzers in less demanding applications. The T3DSO1000-FGMOD-A waveform generator allows Bode Plot measurements up to 25 MHz whereas using the oscipposcope allows Bode Plot measurements up to 120 MHz
The configuration screen enables setup of the reference and measurement channels, with up to three measurement channels possible. Configuration of the measurement frequency and amplitude, setting the number of measurement points, load, variable level sweeps, channel gain, decade or linear frequency mode
The measurement screen enables the setting of five common measurements: Upper cutoff, lower cutoff frequency, bandwidth, gain margin and phase margin, in addition there are user settable measurement cursors
Power analysis
The power analysis application provides a full suite of power measurements and analysis tools. These tools enable an improvement in the efficiency of measurements made on switching power supplies and power devices. The power analysis application can measure power quality, current harmonics, inrush current, switching loss, slew rate, modulation, output ripple, Turn On/ Turn Off, transient response, PSRR and efficiency. Each measurement has a help screen showing a connection diagram with notes
Functions

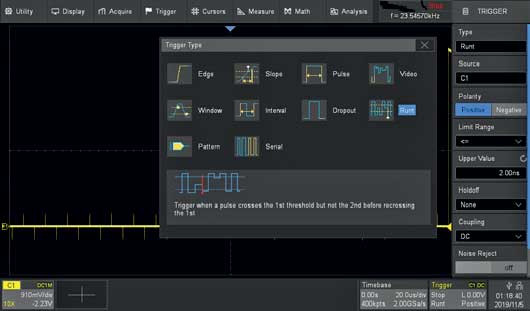

A wide range of powerful triggering functions including Edge, Slope, Pulse, Video, Window, Runt, Interval, Dropout, Pattern, Serial, etc, allows users to debug complex hardware issues with ease.

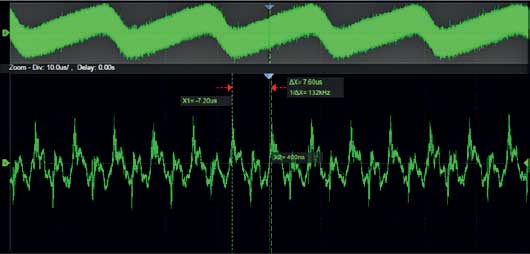

The record length of up to 250 Mpts (interleaved) or up to 125 Mpts (non-interleaved) allows use of a higher sampling rate to capture more signal detail. The hardware-based Zoom then allows quick zoom in to any area of interest.

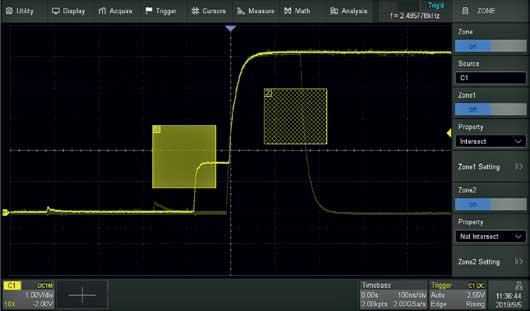

Set up to 2 zones defining each as either an Intersect or a Non Intersect. Trigger occurs when conditions are met. Zone Trigger helps to simplify advanced triggering.

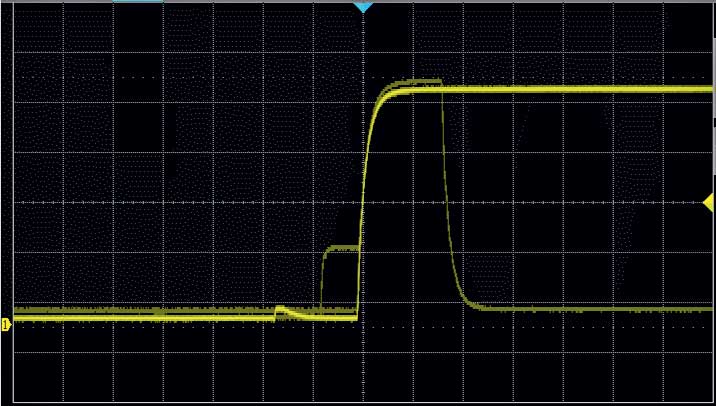

With a waveform capture rate of up to 500,000 wfm/s (sequence mode) and 110,000 wfm/s (normal mode) the T3DSO3000 can easily capture glitches, infrequent anomalies and other low-probability events.

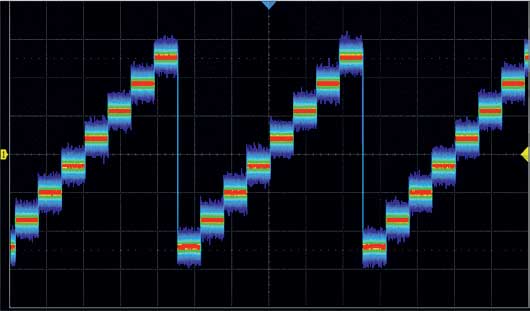

256-level intensity graded waveform display is ideal for viewing modulated and changing waveforms.The Color temperature display clearly shows noise and jitter with infrequently occurring waveforms shown in blue through to the most frequently occurring waveforms shown in red.

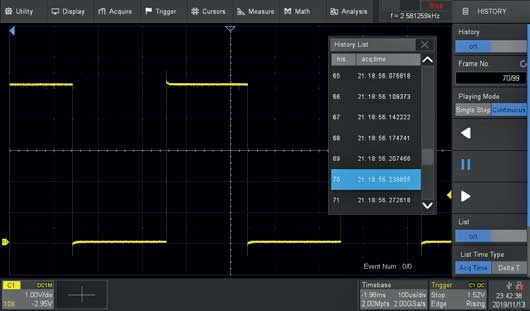

The always enabled History mode records up to 100,000 waveforms allowing users to scroll back through previous acquisitions to analyze past events and locate anomalies quickly. Serial decode, zoom and cursor measurements can be used.

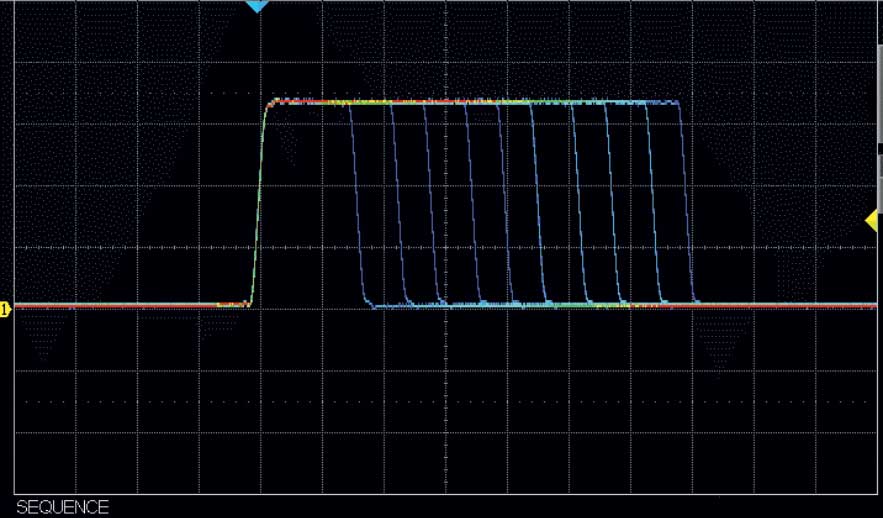

Segmented memory mode can store up to 100,000 waveforms into memory segments for capturing fast events in quick succession. Combine Sequence Mode with advanced triggers to isolate rare events. All the segments can be play back using the History function.
Enhanced Resolution (ERES) function reveals hidden waveform detail by using a linear average filter to reduce waveform noise on single acquisition waveforms, where regular averaging will not work. The ERES acquisition mode is hardware based, allowing waveforms to be captured at a faster rate.

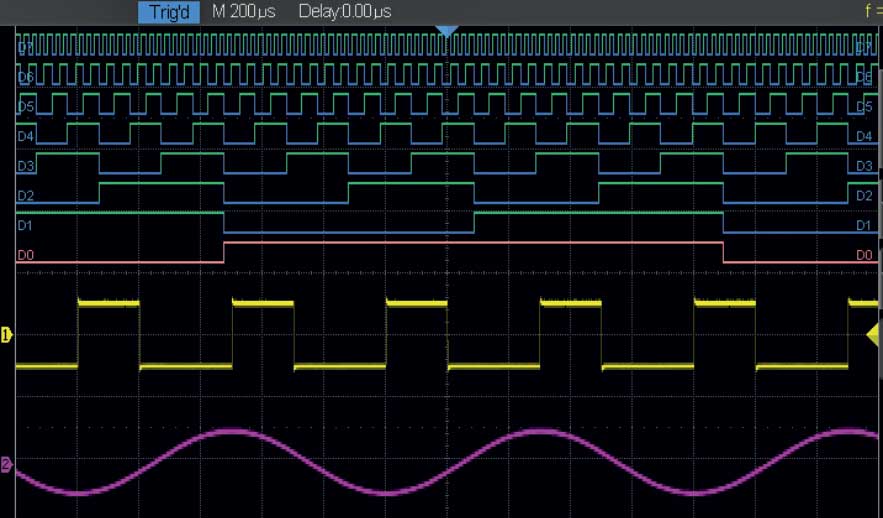

The MSO option adds 16 digital channels enabling users to trigger and acquire digital as well as analog waveforms in a mixed signal debug environment.
With a waveform capture rate of up to 500,000 wfm/s (sequence mode) and 110,000 wfm/s (normal mode) the T3DSO3000 can easily capture glitches, infrequent anomalies and other low-probability events.

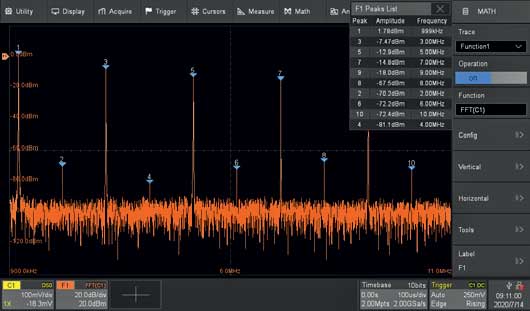

Two Math traces support Plus, Minus, Multiply, Divide, FFT, integration, differential, square root, average, Eres and formula editor, providing a quick insight into the waveform characteristics.

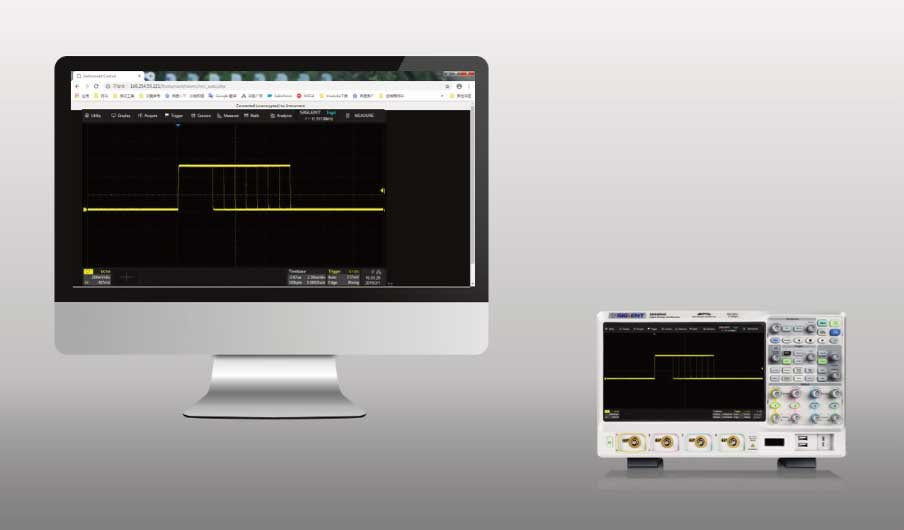

The embedded web server enables users to control the oscilloscope from a single browser web page. This provides users with an easy to use, familiar, browser based, remote control interface for remote monitoring and troubleshooting.
Parameter measurements include 4 categories: Vertical, Horizontal, Miscellaneous and Channel Delay providing over 50 different types of measurements.
Measurements can be performed on the whole waveform or within a specified gate period.
Simple measurement mode measures up to 12 waveform characteristics simultaneously.

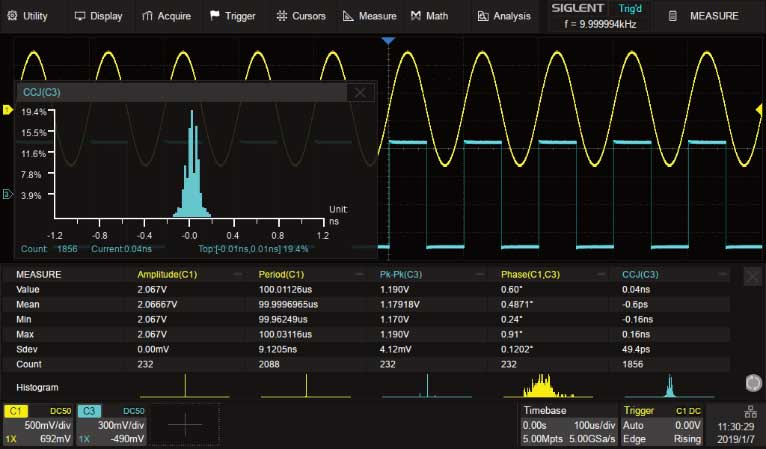

Statistics show the current value, maximum value, minimum value, standard deviation, mean value of up to 12 parameters simultaneously.
Histogram is available to show the probability distribution of a parameter. Trend is available to show the parameter value vs. time. In addition, horizontal measurements can process up to 1000 signal edges within one single acquisition, thus greatly improving the test efficiency.
Trigger and decode up to 2 common embedded and automotive serial buses, I2C, SPI, UART, LIN, CAN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester. Protocol information can be quickly and intuitively displayed, time aligned with the waveform and in table format.

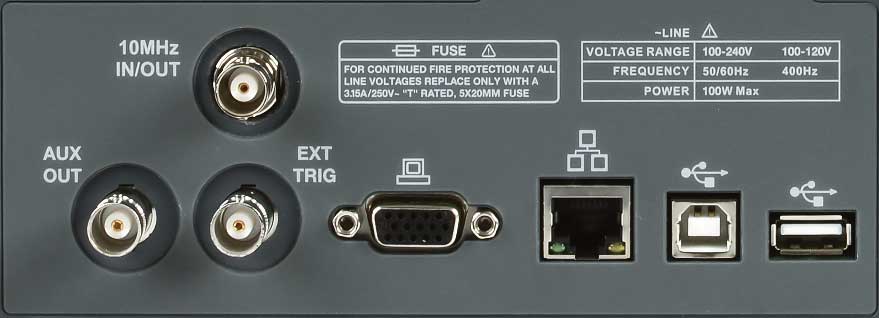

Connectivity includes External Trigger Input, Pass/Fail and Trigger Out, USB Device (USBTMC) and LAN for remote control, and a Kensington Lock security point.
The T3DSO3000 utilizes a hardware based mask test function, that can perform 18,000 pass / fail tests per second. Users can define their own masks directly from a waveform or from the mask editor capability. The masks can then be used for Go / No Go testing with any failures stored as history waveforms or screen shots. The masks can also be stored on the T3DSO3000 for future use, making it suitable for long-term signal monitoring or automated production line testing.

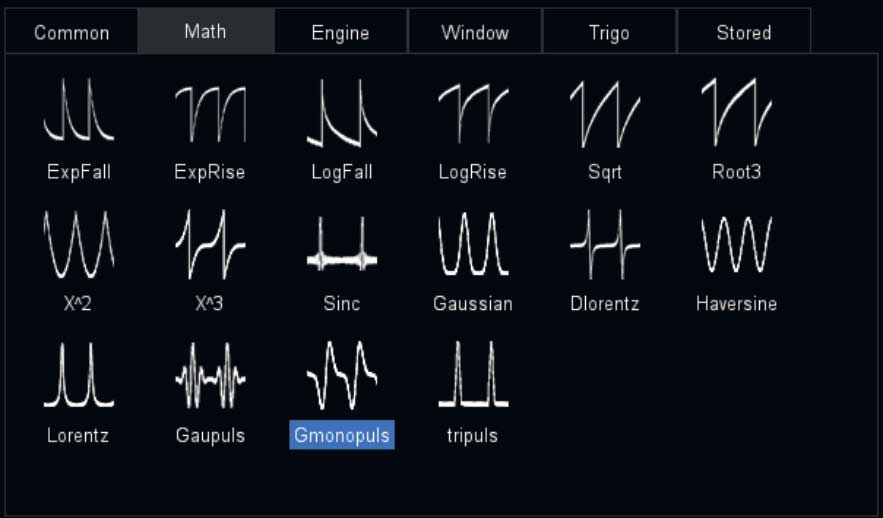

The 25 MHz function / arbitrary waveform generator comprises 6 standard waveforms and 45 arbitrary waveforms.

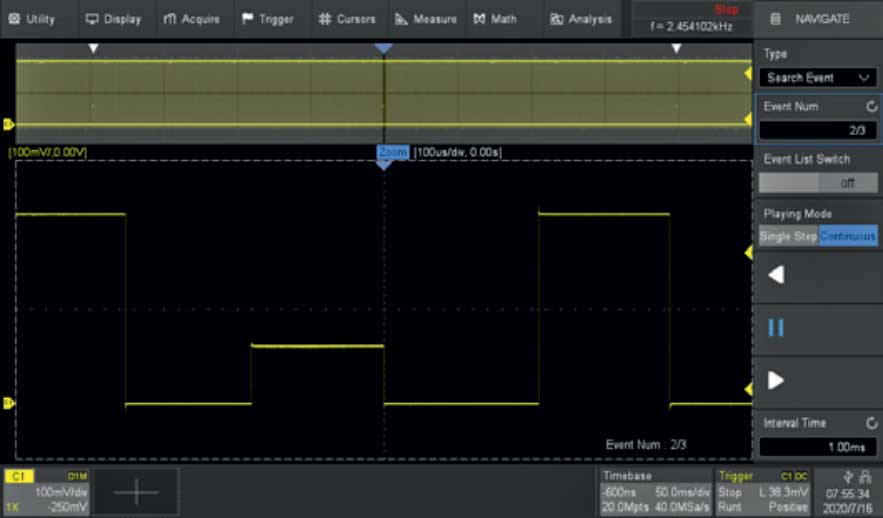

The oscilloscopes can find events within an acquisition record or history acquisition based on user specified trigger conditions. Navigate browses through Events flagged by the Search, plays back history events or continuously moves the delay position on long records (useful in zoom view).
| Bandwidth | 350 MHz |
| Sample Rate (Max.) | All models have two 5 GSa/s ADCs. When all channels are enabled, each channel has a maximum sample rate of 2.5 GSa/s When a single channel per pair is active, that channel has sample rate of 5 GSa/s |
| Analog Channels | 4 + EXT |
| Memory Depth (Max.) | 125 Mpts/Ch (non interleaved mode) 250 Mpts/Ch (interleave mode) |
| Waveform Capture Rate (Max.) | 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode) |
| Trigger Type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Serial |
| Serial Trigger and Decoder | I2C, SPI, UART,CAN,LIN, CAN FD,FlexRay, I2S, MIL-STD-1553B, SENT and Manchester |
| 16 Digital Channels | Maximum waveform capture rate up to 1.25 GSa/s, record length up to 62.5 Mpts/Ch |
| Waveform Generator | External USB waveform generator, 25 MHz, sample rate of 125 Msa/s, 16 kpts memory |
| I/O | USB host, USB device, LAN 100M, pass/fail, trigger In/Out |
| Probe (Std) | 1 PP020-1 for each channel |
| Display | 10.1" touch screen TFT-LCD (1024 x 600) |
| Dimensions | 14.5 x 5.6 x 9" (370 x 144 x 231 mm) |
| Weight | 12.3 lbs (5.6 kg) |
Click on a category to view a selection of compatible accessories with the Teledyne LeCroy T3DSO3354 Oscilloscope, 350 MHz, 4-channel.
| Bandwidth | 350 MHz |
| Sample Rate (Max.) | All models have two 5 GSa/s ADCs. When all channels are enabled, each channel has a maximum sample rate of 2.5 GSa/s When a single channel per pair is active, that channel has sample rate of 5 GSa/s |
| Analog Channels | 4 + EXT |
| Memory Depth (Max.) | 125 Mpts/Ch (non interleaved mode) 250 Mpts/Ch (interleave mode) |
| Waveform Capture Rate (Max.) | 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode) |
| Trigger Type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Serial |
| Serial Trigger and Decoder | I2C, SPI, UART,CAN,LIN, CAN FD,FlexRay, I2S, MIL-STD-1553B, SENT and Manchester |
| 16 Digital Channels | Maximum waveform capture rate up to 1.25 GSa/s, record length up to 62.5 Mpts/Ch |
| Waveform Generator | External USB waveform generator, 25 MHz, sample rate of 125 Msa/s, 16 kpts memory |
| I/O | USB host, USB device, LAN 100M, pass/fail, trigger In/Out |
| Probe (Std) | 1 PP020-1 for each channel |
| Display | 10.1" touch screen TFT-LCD (1024 x 600) |
| Dimensions | 14.5 x 5.6 x 9" (370 x 144 x 231 mm) |
| Weight | 12.3 lbs (5.6 kg) |
