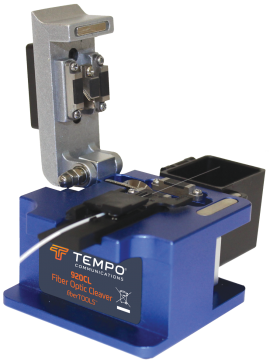

The 920CL cleaver provides fast and accurate fiber cleaves that can be used with any fusion splicer and for preparing fibers for use with mechanical connectors.
The 920CL cleaver provides fast and accurate fiber cleaves that can be used with any fusion splicer and for preparing fibers for use with mechanical connectors.
When the fixed clamp is installed the fiber is securely held in place and is capable of cleaving 200-micron, 250-micron, 900-micron, 3mm, ribbon, and bowtie fibers. The dust bin collects all fiber end cuts for safe disposal.
Features
| Fiber Type | SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657) |
| Fiber Cleave Length | 5 to 20 mm |
| Cladding Diameter | 125 μm |
| Coating Diameter | 0.25 mm and 0.9 mm |
| Fiber Count | Single |
| Cleaving Angle | < 0.5° |
| Blade Life | 48,000 Cleaves |
| Dimensions | 2.13 x 2.28 x 2.28" (54 x 58 x 58 mm) |
| Weight | 0.68 lbs (310 g) |
