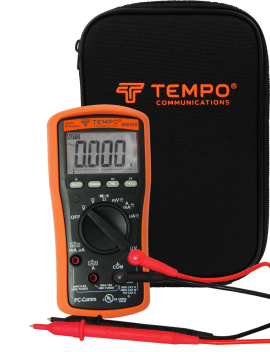

Equipped with all the measurement features you’re likely to need, the MM200 from Tempo Communications is an accurate, 6000 count, segmented, bar-graph, auto-ranging multimeter that will suit most electricians’ needs.
Equipped with all the measurement features you’re likely to need, the MM200 from Tempo Communications is an accurate, 6000 count, segmented, bar-graph, auto-ranging multimeter that will suit most electricians’ needs.
Built to international safety standards, the MM200 performs all the tests any electrician would want from a multimeter. Features like “BeepJack” help prevent damage when leads are attached to the wrong terminals for the type of test selected. Fully auto-ranging or manual—the choice is yours. The backlit LCD helps when testing in those awkward cupboards.
Features
Measurements
| Display | LCD (6000) and 24-segment bar graph |
| Polarity | Automatic |
| Sampling Rate | Numeric Display: 5 per second Bar Graph Display: 40 per second |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy) per °C below 18 °C or above 28 °C |
| Automatic Shut-Off | After 34 minutes of inactivity |
| Noise Rejection | Normal Mode Rejection Ratio > 60 dB at 50 Hz and 60 Hz when measuring DCV Common Mode Rejection Ratio > 60 dB from 0 Hz to 60 Hz when measuring ACV Common Mode Rejection Ratio > 100 dB at 0 Hz, 50 Hz and 60 Hz when measuring DCV |
| Operating Conditions | 32 to 104°F (0 to 40°C) |
| Relative Humidity | 80% maximum for temperatures up to 88°F (31°C), decreasing linearly to 50% maximum at 104°F (40°C) |
| Altitude | 6500' (1981.2 m) maximum |
| Pollution Degree | 2 |
| Storage Temperature | –4 to 140°F (-20 to 60°C) |
| Battery | Two 1.5 V batteries (AAA, NEDA 24A or IEC LR03) |
| Volts & AutoCheck | 1100 V DC/AC rms |
| mV, O, and Others | 1000 V DC/AC rms |
| µA and mA | 0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms Dimension: 0.24 x 1.26" (6 x 32 mm) |
| A | 11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms Dimension: 0.39 x 1.5" (10 x 38 mm) |
| V/ohms/mA/A to COM | CAT III 600V and CAT IV 300V AC & DC |
| E.M.C. | Meets EN61326-1:2013 |
