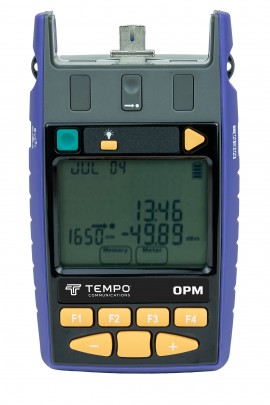

This is a high-power handheld optical power meter with an H6 InGaAs detector, supporting measurements from +33 to -47 dBm. Equipped with an APC connector for minimized back reflections, it is ideal for pump laser testing, laboratory environments, and high-power single-mode telecom networks requiring maximum accuracy and stability.
This is a high-power handheld optical power meter with an H6 InGaAs detector, supporting measurements from +33 to -47 dBm. Equipped with an APC connector for minimized back reflections, it is ideal for pump laser testing, laboratory environments, and high-power single-mode telecom networks requiring maximum accuracy and stability.
Features
| Detector Type | H6 InGaAs (Corning SMF-28e fiber, APC polish) |
| Response Wavelength | 800 to 1700 nm |
| Calibration Wavelengths | 1310, 1480, 1550, 1577, 1610 nm |
| Power Range | +33 to -47 dBm |
| Tone and Autotest Sensitivity | -20 dBm |
| Midrange Linearity | 0.04 dB |
| Calibration Accuracy | ±5% (0.21 dB) |
| Polarization Sensitivity | <0.05 dB (typical) |
| Total Uncertainty | 0.35 dB |
| Short-Term Stability | 0.03 dB (typical) |
| Damage Level | +33 dBm (sustained for up to 2 minutes) |
| Memory | 1000 4-λ tests with timestamp Unlimited with USB key |
| Interfaces | USB-micro for power/software USB-A for memory key |
| Power | 2 x AA Alkaline/Lithium 2 x NiMH rechargeable via USB |
| Battery Life | Up to 1000 hours (laser and backlight off) 200 hours (laser blink mode) |
| Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Case | Polycarbonate with rubber edges Moisture resistant 1 m drop-tested |
| Temperature | Operating: 5 to 131°F (-15 to 55°C) Storage: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
