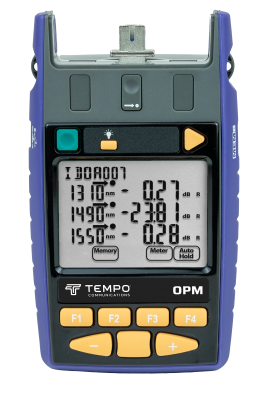

This is a handheld optical power meter with an extra-large Silicon detector optimized for multimode, ribbon fiber, and plastic optical fiber (POF) testing. With a power range up to +15 dBm and ISO/IEC 17025 traceable calibration, it is designed for broadband, LAN, and fiber bundle applications where large-core or high-power measurements are required.
This is a handheld optical power meter with an extra-large Silicon detector optimized for multimode, ribbon fiber, and plastic optical fiber (POF) testing. With a power range up to +15 dBm and ISO/IEC 17025 traceable calibration, it is designed for broadband, LAN, and fiber bundle applications where large-core or high-power measurements are required.
Features
| Detector Type | Large Silicon (Si5) large-area detector for multimode, ribbon, and POF |
| Response Wavelength | 400 to ~1100 nm |
| Calibration Wavelengths | Typical: 470, 520, 660, 780, 820, 850, 910, 940, 980 nm |
| Power Range | +33 to -50 dBm |
| Tone and Autotest Sensitivity | Up to -40 dBm |
| Midrange Linearity | 0.06 dB (typical) |
| Calibration Accuracy | ±5% (typical, 0.25 dB) |
| Polarization Sensitivity | <0.05 dB (typical) |
| Total Uncertainty | 0.5 dB |
| Short-Term Stability | 0.03 dB (typical) |
| Damage Level | +33 dBm (sustained for short duration) |
| Memory | 1000 4-λ tests with timestamp Unlimited with USB key |
| Interfaces | USB-micro for power/software USB-A for memory key |
| Power | 2 x AA Alkaline/Lithium 2 x NiMH rechargeable via USB |
| Battery Life | Up to 1000 hours (laser and backlight off) 200 hours (laser blink mode) |
| Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Case | Polycarbonate with rubber edges Moisture resistant 1 m drop-tested |
| Temperature | Operating: 5 to 131°F (-15 to 55°C) Storage: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
