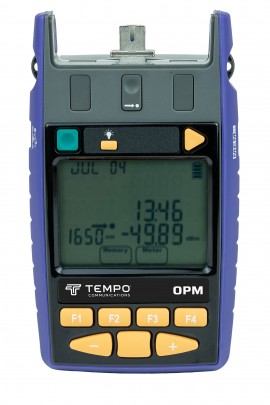

This is a handheld high-power optical power meter with an InGaAs H5 detector and an integrated Visual Fault Locator (VFL). With a power measurement range from +24 to -60 dBm, it is ideal for high-power telecom systems, DWDM, and CATV testing. The unit combines wide dynamic range with ISO/IEC 17025 traceable calibration and rugged design for field or lab use.
This is a handheld high-power optical power meter with an InGaAs H5 detector and an integrated Visual Fault Locator (VFL). With a power measurement range from +24 to -60 dBm, it is ideal for high-power telecom systems, DWDM, and CATV testing. The unit combines wide dynamic range with ISO/IEC 17025 traceable calibration and rugged design for field or lab use.
Features
| Detector Type | H5 InGaAs detector |
| Response Wavelength | 800 to 1700 nm |
| Calibration Wavelengths | 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650 nm |
| Power Range | +24 to -60 dBm (typical) +24 to -50 dBm at some λ |
| Tone and Autotest Sensitivity | -35 to -40 dBm |
| Midrange Linearity | 0.04 dB (typical) |
| Calibration Accuracy | ±1% (0.06 dB) |
| Polarization Sensitivity | <0.05 dB (typical) |
| Total Uncertainty | 0.35 dB |
| Short-Term Stability | 0.03 dB (typical) |
| Damage Level | +27 dBm (for 2 minutes maximum) |
| Memory | 1000 4-λ tests with timestamp Unlimited with USB key |
| Interfaces | USB-micro for power/software USB-A for memory key |
| Power | 2 × AA Alkaline/Lithium 2 × NiMH rechargeable via USB |
| Battery Life | Up to 1000 hours (laser and backlight off) 200 hours in blink mode |
| Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Case | Polycarbonate with rubber edges Moisture resistant 1 m drop-tested |
| Temperature | Operating: 5 to 131°F (-15 to 55°C) Storage: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
