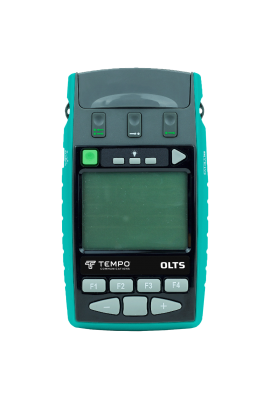

A Two-Way Optical Loss Test set (OLTS) that's perfect for medium to ultra-high fiber count loss and length testing applications on multimode fiber at 850 and 1330 nm. A pair of these compact instruments set new standards of productivity, accuracy, and ease of use. The 650 nm VFL VisiTester feature mixes a VFL in with the test signal during Autotest. It operates as a stand-alone VFL or gives positive visual identification of a fiber to be connected during loss testing.
A Two-Way Optical Loss Test set (OLTS) that's perfect for medium to ultra-high fiber count loss and length testing applications on multimode fiber at 850 and 1330 nm. A pair of these compact instruments set new standards of productivity, accuracy, and ease of use. The 650 nm VFL VisiTester feature mixes a VFL in with the test signal during Autotest. It operates as a stand-alone VFL or gives positive visual identification of a fiber to be connected during loss testing.
Each fiber needs just one test hook-up and one key press for a complete bidirectional loss and length test, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports.
A pair of instruments both display length and bi-directional loss, in real time, with no need to specify master and slave instruments. A single instrument can also be used as a stand-alone light source and power meter, VFL, or tone generator and detector.
Features
Source | |
Modulated Output | 270 Hz 1 kHz 2 kHz ±2% 12 Multi-Fiber ID tones |
Output Wavelength | 850 and 1300 nm LED VisiTester |
Output Power | -27 dBm ±1 dB at 62.5 μm |
Adjust Output Power | Fixed |
Stability Over Temperature | 0.35 dB |
Short Term Stability | For 15 minutes, typical ±2°C, after warm up, ORL < -25 dB:
|
Wavelength Drift | 0.4 nm per °C (typical) |
Mode Controlled | 50/125μm compliant:
|
Reconnection Repeatability at 95% Confidence | 0.05 dB |
2-Way Autotest Only | |
Length Range | 4.5 dB at 62.5 μm |
Length Accuracy | 0.01% ±4 m |
2-Way Autotest | |
Length Resolutions | 1 m (0.000 to 9.999 km) 10 m (10.00 to 99.99 km) 100 m (100.0 to 127.9 km) |
Loss Range | 24 dB at 62.5 μm |
Loss Repeatability and Loss Linearity | 0.06 dB |
1-Way Autotest | |
Loss Range | 24 dB at 62.5 μm |
Loss Repeatability and Loss Linearity | 0.06 dB |
Manual | |
VisiTester Blink Rate | CW or 2 Hz |
Meter | |
Detector Type | InGaAs |
Response Wavelength | 600 and 1700 nm |
Calibration Wavelengths | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
Power Range | 10 to -60 dBm (780 and 980, and 1590 and 1650 nm) 10 to -70 dBm (1270 and 1650 nm) |
Accuracy | 1% (0.06 dB) |
Mid-range Linearity | 0.04 dB (typical) |
Total Uncertainty | 0.3 dB (maximum) |
ID Tone Detection and Autotest Sensitivity | Up to -50 dBm |
Resolution | 0.01 dB |
Polarization Sensitivity | <0.05 dB (typical) |
Tone Detection | 150 to 9999 Hz ±1% |
VisiTester Wavelength | 650 ±5 nm |
VisiTester Power | 0 dBm ±1 dB at SMF |
VisiTester Laser Safety | Class 1 IEC60825-2 |
Autotest | 1-way: Compatible with other T23400 and T27400 models 2-way: Compatible with identical model only |
Usb Interfaces | USB-micro for power and software USB-A Flash Drive |
Software | KITS - free download |
Power | Battery External power via micro-USB |
Battery Life | Laser and LED source: 80 hours (typical) in Autotest Power Meter: 1000 hours (typical) |
Battery Type | 2 x AA (LR6) Alkaline 2 x AA NiMH AA (rechargeable via micro-USB) |
Auto Off | Selectable |
Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
Case | Polycarbonate (body) Rubber (edges and corners) Moisture resistance 1 m drop tested |
Memory | For 8000 fibers Unlimited on USB Flash Drive |
Temperature | Operating temperature: 5 to 131°F (-15 to 55°C) Storage temperature: -13 to 158°F (-25 to 70°C) |
Relative Humidity | 0 to 95% |
Warranty | 3 years |
Calibration Validity ISO and IEC 17025 | 3 years |
Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
Weight | 0.92 lbs (0.42 kg) |
Shipping Weight | 3.3 lbs (1.5 kg) |
