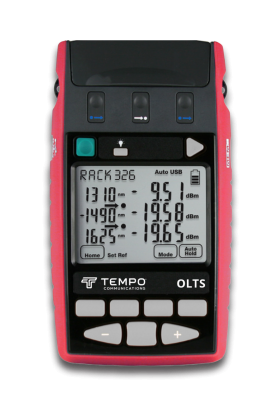

A Dual Optical Loss Test Set used to test power, loss, continuity, and faults on single-mode fiber optic systems at 1310 and 1550 nm. In a small package, it provides a powerful solution to improve test flexibility and productivity.
A Dual Optical Loss Test Set used to test power, loss, continuity, and faults on single-mode fiber optic systems at 1310 and 1550 nm. In a small package, it provides a powerful solution to improve test flexibility and productivity.
The 650 nm VFL Visitester feature mixes a VFL in with the test signal during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected for loss testing.
Features
| Meter | |
| Detector Type | InGaAs |
| Response Wavelength | 600 and 1700 nm |
| Calibration Wavelengths | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Power Range | 10 to -60 dBm (780 and 980 nm) 10 to -70 dBm (1270 and 1650 nm) |
| Mid-range Linearity | 0.04 dB (typical) |
| Total Uncertainty | 0.3 dB (maximum) |
| ID Tone Detection and Autotest Sensitivity | Up to -50 dBm |
| Accuracy | 1% (0.06 dB) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | <0.05 dB (typical) |
| Autotest | 1-way: Compatible with Kingfisher's 1-way Loss Test Sets and Power Meters (except T9600 series) |
| Tone Detection | 150 to 9900 Hz ±1% |
| Manual | |
| VisiTester Blink Rate | CW or 2 Hz |
| Source | |
| Modulated Output | 270 Hz 1 kHz 2 kHz ±2% 12 Multi-Fiber ID tones |
| Output Wavelength | Port 1: 1310 and 1550 nm Laser, VisiTester |
| Output Power | -3 dBm ±1 dB (at SMF for 1310 and 1550 nm) |
| Adjust Output Power | Adjustable over 7 dB in 0.01 dB steps (for 1310 and 1550 nm and VisiTester) |
| Short Term Stability | For 15 minutes, typical ±2°C, after warm up, ORL < -25 dB:
|
| Stability Over Temperature | 0.6 dB (typical for 1310, 1550 nm) |
| Wavelength Initial Tolerance at 25°C | 20 nm |
| Spectrum Width at FWHM | 3 nm |
| Wavelength Drift | 0.4 nm per °C (typical) |
| Reconnection Repeatability at 95% Confidence | 0.1 dB (for 1310 and 1550 nm, VisiTester) |
| VisiTester Wavelength | 650 ±5 nm |
| VisiTester Spectrum Width at FWHM | 3 nm |
| VisiTester Wavelength Drift | 0.1 nm per °C |
| VisiTester Power | +2 dBm ±1 dB at MMF |
| VisiTester Laser Safety | Class 1 IEC60825-2 |
| Calibration Validity ISO/IEC17025 | 3 years |
| Battery Life | Laser and LED source: 90 to 80 hours (typical) in Autotest |
| Power | Battery External power via USB |
| Battery Type | 2 x AA (LR6) Alkaline 2 x AA NiMH AA |
| Usb Interfaces | USB-micro for power and software USB-A for memory key |
| Auto Off | Selectable |
| Software | KITS - free download |
| Memory | 1000 four λ tests with date and time Unlimited on USB |
| Case | Polycarbonate (body) Rubber (edges and corners) Moisture resistance 1-meter drop tested |
| Display Dimensions | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Temperature | Operating temperature: 5 to 131°F (-15 to 55°C) Storage temperature: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
| Meter | |
| Detector Type | InGaAs |
| Response Wavelength | 600 and 1700 nm |
| Calibration Wavelengths | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Power Range | 10 to -60 dBm (780 and 980 nm) 10 to -70 dBm (1270 and 1650 nm) |
| Mid-range Linearity | 0.04 dB (typical) |
| Total Uncertainty | 0.3 dB (maximum) |
| ID Tone Detection and Autotest Sensitivity | Up to -50 dBm |
| Accuracy | 1% (0.06 dB) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | <0.05 dB (typical) |
| Autotest | 1-way: Compatible with Kingfisher's 1-way Loss Test Sets and Power Meters (except T9600 series) |
| Tone Detection | 150 to 9900 Hz ±1% |
| Manual | |
| VisiTester Blink Rate | CW or 2 Hz |
| Source | |
| Modulated Output | 270 Hz 1 kHz 2 kHz ±2% 12 Multi-Fiber ID tones |
| Output Wavelength | Port 1: 1310 and 1550 nm Laser, VisiTester |
| Output Power | -3 dBm ±1 dB (at SMF for 1310 and 1550 nm) |
| Adjust Output Power | Adjustable over 7 dB in 0.01 dB steps (for 1310 and 1550 nm and VisiTester) |
| Short Term Stability | For 15 minutes, typical ±2°C, after warm up, ORL < -25 dB:
|
| Stability Over Temperature | 0.6 dB (typical for 1310, 1550 nm) |
| Wavelength Initial Tolerance at 25°C | 20 nm |
| Spectrum Width at FWHM | 3 nm |
| Wavelength Drift | 0.4 nm per °C (typical) |
| Reconnection Repeatability at 95% Confidence | 0.1 dB (for 1310 and 1550 nm, VisiTester) |
| VisiTester Wavelength | 650 ±5 nm |
| VisiTester Spectrum Width at FWHM | 3 nm |
| VisiTester Wavelength Drift | 0.1 nm per °C |
| VisiTester Power | +2 dBm ±1 dB at MMF |
| VisiTester Laser Safety | Class 1 IEC60825-2 |
| Calibration Validity ISO/IEC17025 | 3 years |
| Battery Life | Laser and LED source: 90 to 80 hours (typical) in Autotest |
| Power | Battery External power via USB |
| Battery Type | 2 x AA (LR6) Alkaline 2 x AA NiMH AA |
| Usb Interfaces | USB-micro for power and software USB-A for memory key |
| Auto Off | Selectable |
| Software | KITS - free download |
| Memory | 1000 four λ tests with date and time Unlimited on USB |
| Case | Polycarbonate (body) Rubber (edges and corners) Moisture resistance 1-meter drop tested |
| Display Dimensions | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Temperature | Operating temperature: 5 to 131°F (-15 to 55°C) Storage temperature: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
