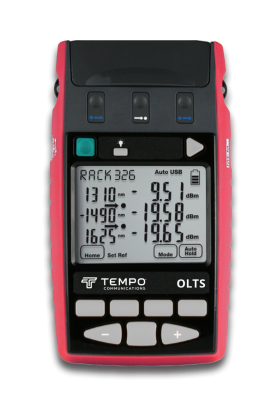

This is a handheld Optical Loss Test Set (OLTS) that combines an InGaAs power meter with multimode LED sources (850/1300 nm) and singlemode laser sources (1310/1550 nm). With the integrated VisiTester function, it simplifies fiber identification by blinking the active fiber during Autotest. Rugged, compact, and ISO/IEC 17025 traceable, it is ideal for certifying and troubleshooting multimode and singlemode networks.
This is a handheld Optical Loss Test Set (OLTS) that combines an InGaAs power meter with multimode LED sources (850/1300 nm) and singlemode laser sources (1310/1550 nm). With the integrated VisiTester function, it simplifies fiber identification by blinking the active fiber during Autotest. Rugged, compact, and ISO/IEC 17025 traceable, it is ideal for certifying and troubleshooting multimode and singlemode networks.
Features
| Detector Type | InGaAs |
| Response Wavelength | 600 to 1700 nm |
| Calibration Wavelengths | 820, 850, 980, 1270, and 1650 nm (25+ λ) |
| Power Range | +10 to -70 dBm (InGaAs) |
| Tone and Autotest Sensitivity | -50 dBm |
| Midrange Linearity | 0.04 dB (typical) |
| Calibration Accuracy | ±1% (0.06 dB) |
| Polarization Sensitivity | <0.05 dB (typical, APC) |
| Total Uncertainty | 0.3 dB |
| Source Wavelengths | 850 and 1300 nm LED 1310 and 1550 nm laser |
| Source Output Power | -32 dBm LED -3 dBm laser (typical) |
| Source Stability | 0.04 dB (15 minutes, typical) |
| VisiTester Output | 650 ± 5 nm CW 2 Hz blink Class 1 |
| Memory | 1000 4-λ tests with timestamp Unlimited on USB key |
| Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Temperature | Operating: 5 to 131°F (-15 to 55°C) Storage: -13 to 158°F (-25 to 70°C) Humidity: 0 to 95% RH |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.93 lbs (420 g) |
