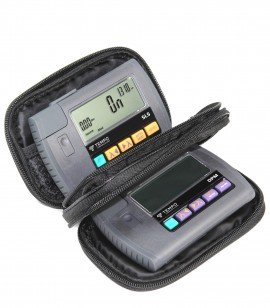

Tempo TK038 Simple Test Kit for SM and MM fibers-

Downloads: manual

More Tempo Communications Products

Ask an Expert

Tempo TK038 Simple Test Kit for SM and MM fibers

Model: TK038 | UPC: 810025419264

A simple fiber optic tester kit, for low to modest test volume on single mode and multimode fiber optic systems.

A simple fiber optic tester kit, for low to modest test volume on single mode and multimode fiber optic systems.

Your Price $3117.24 USD
Availability 2 to 3 Weeks
Quantity

Tempo Communications TK038 Offers

Typical testing applications

  • Optical power at 8 calibrated λ, -60 to +10 dBm range
  • Optical loss on SM fiber at 1310 and 1550 nm, 60 dB range
  • Optical loss on MM fiber 850 and 1300 nm 40 dB (at 62.5 um) range, EF compliant
  • Reporting software for cable loss (manual data entry)
  • Optical continuity and tone checking, 12 Multi-Fiber ID fiber, 40 dB range
  • Generally meets safety regulations and standards based test procedures

Connector and battery summary

  • SC interchangeable connector adapters
  • Meter accepts PC and APC polish. Source accepts PC polish
  • Meter 2 x AAA alkaline. Run time >300 hours
  • Source 2 x AAA alkaline. Run time >35 hours

Tempo Communications TK038 Specifications

Pocket Fiber Optic Power Meter T9600a
Detector Type InGaAs
Response Wavelength 600 and 1700 nm
Calibration Wavelengths 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm
Power Range +5 to -60 dBm
Mid-Range Linearity 0.04 dB (typical)
Total Uncertainty 0.3 dB (maximum)
Wavelength Sensitivity (± 30 nm) 0.03 dB (typical)
ID Tone Detection Sensitivity Up -50 dBm

What's included with the Tempo Communications TK038

  • Fiber Optic Laser Test Source T9822A
  • Fiber Optic LED Test Source T9812A
  • Pocket Fiber Optic Power Meter T9600A
  • Canvas Carrying Pouch
brochure Brochure manual for the Tempo TK038 Simple Test Kit for SM and MM fibers
