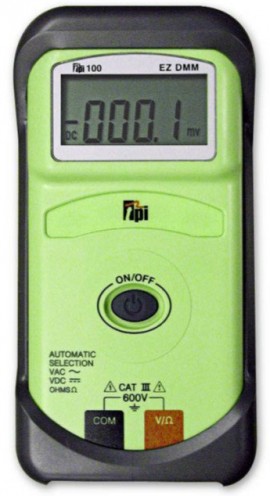

TPI 100 EZ One Button Digital Multimeter, Automatically Switches Functions

Model: 100 | Order No: 100-EZ | UPC: 637623001000

With a 0 to 600V AC and DC range you can safely perform measurements.

With a 0 to 600V AC and DC range you can safely perform measurements.

Sale Price $44.96 USD
Regular Price $49.95 USD
Availability 1 to 2 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 100 EZ One Button Digital Multimeter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 100 EZ One Button Digital Multimeter

Recommended Accessories

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters-

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters

A771

TPI 100 Offers

Features

  • Automatically switches between ACV, DCV, and ohms (resistance)
  • Single button operation
  • Auto power off, increasing battery life
  • 4,000 count display
  • cULus 61010-1
  • CAT II – 1000V, CAT III – 600V

Applications

  • Measure line and control circuit voltages
  • Measure resistance of motor windings, transformers, and solenoids
  • Make general AC and DC voltage and resistance measurements
  • Measure the resistance of elements and electric heater cores
  • Test continuity of wiring
  • Verify voltage at breakers and outlets
  • Use as a back-up meter in your tool box

TPI 100 Specifications

DC Volts Maximum Input: 600V (Minimum Input = 1.5V)
Maximum Resolution: 0.001V
Accuracy: ±0.5%
AC Volts Maximum Input: 600V (Minimum Input = 1.7V)
Maximum Resolution: 0.1V
Accuracy: ±0.8%
Resistance (Ohms) Maximum Input: 40MΩ
Maximum Resolution: 0.1Ω
Accuracy: ±0.8%
Continuity Audible at less than 100Ω
Protective Boot Yes (standard)
Display Type 4000 count LCD
Range Selection Auto including function selection
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 122°F (-10 to 50°C)
Humidity 80% non-condensing
Size 6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot
Weight 12oz (340g) with boot
Battery Type 1.5V "AA" Alkaline (2)
Battery Life 500hrs Typical
OverInput Category CAT III 600V
Agency Approval IEC 61010-1
Warranty 3 Years
Click here for complete specifications on the TPI 100

What's Included with the TPI 100

  • TPI 100 Digital Multimeter
  • Rubber Boot
  • Test Lead Set
  • 1.5 Volt Battery
  • Instruction Manual
