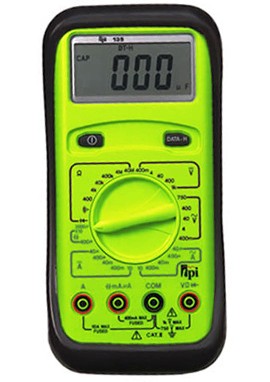

Measure all of the basic electrical functions with this digital multimeter with capacitance. Additionally, it features extra-large numerals on the LCD and data hold for all functions and ranges.
Measure all of the basic electrical functions with this digital multimeter with capacitance. Additionally, it features extra-large numerals on the LCD and data hold for all functions and ranges.
Features
Applications
| DC Volts | Maximum Input: 1000V
Maximum Resolution: 0.1mV Accuracy: ±0.5% |
| AC Volts | Maximum Input: 750V
Maximum Resolution: 0.01mV Accuracy: ±0.8% |
| DC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: ±0.5% |
| AC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: ±0.75% |
| Resistance (Ohms) | Maximum Input: 40MΩ
Maximum Resolution: 0.1mΩ Accuracy: ±0.75% |
| Frequency | N/A |
| Capacitance | Maximum Input: 20000µF
Maximum Resolution: 0.01µF Accuracy: ±2% |
| Continuity | Audible at less than 100Ω |
| Diode | 3V at 1mA maximum output |
| True RMS Responding | No |
| Conductance | No |
| Pulse Width | No |
| Data Hold | Yes |
| Min/Max Record | No |
| Time Stamp Logging | No |
| Relative Mode | No |
| Compare Mode | No |
| RS-232 Output | No |
| Process Loop Output | No |
| Sleep Mode / Auto Off | No |
| Protective Boot | Yes (standard) |
| Display Type | 4000 count LCD |
| Range Selection | Auto / Manual |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Humidity | 80% non-condensing |
| Size | 7.4" x 3.4" x 1.2" (187mm x 86mm x 33mm) with boot |
| Weight | 12oz (340g) with boot |
| Battery Type | 1.5V "AA" Alkaline (2) |
| Battery Life | 200hrs Typical |
| OverInput Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | Limited Lifetime |
Click on a category to view a selection of compatible accessories with the TPI 135 Digital Multimeter with capacitance, 750AC V, 1000DC V.
