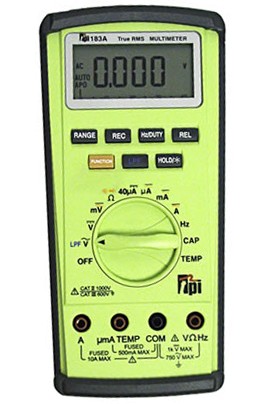

The meter is easy to use and capable of measuring V AC, V DC, A AC, A DC, Resistance, Frequency, Duty Cycle, Diodes, Capacitance, Temperature and Continuity.
The meter is easy to use and capable of measuring V AC, V DC, A AC, A DC, Resistance, Frequency, Duty Cycle, Diodes, Capacitance, Temperature and Continuity.
The handheld unit is six instruments in 1 making working in the field simpler.
Features
Applications
| DC Volts | Maximum Input: 1000V
Maximum Resolution: 0.1mV Accuracy: ±0.05% |
| AC Volts | Maximum Input: 750V
Maximum Resolution: 0.01mV Accuracy: ±0.4% |
| DC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: ±0.8% |
| AC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: ±0.75% |
| Resistance (Ohms) | Maximum Input: 40MΩ
Maximum Resolution: 0.1mΩ Accuracy: ±0.05% |
| Frequency | Maximum Input: 10MHz
Maximum Resolution: 0.01Hz Accuracy: ±0.05% |
| Capacitance | Maximum Input: 4000µF
Maximum Resolution: 0.01nF Accuracy: ±3% |
| Inductance | N/A |
| Temperature
(K-Type Thermocouple) |
Maximum Input: 2372°F (1300°C)
Maximum Resolution: 0.1°F / °C Accuracy: ±2% |
| Continuity | Audible at less than 300Ω |
| Diode | 2.7V at 1mA maximum output |
| Duty Cycle | Range: 0.1 to 99.9%
Accuracy: 0.1% + 1 count |
| True RMS Responding | Yes |
| Conductance | No |
| Pulse Width | No |
| Data Hold | Yes |
| Min/Max Record | Yes |
| Time Stamp Logging | No |
| Relative Mode | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 4000 count LCD, 2 times per second update |
| Range Selection | Auto/Manual |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -10° to 50°C (14° to 122°F) |
| Relative Humidity | 0% to 80% |
| Size | 33mm x 86mm x 187mm (1.3in x 3.4in x 7.4in) |
| Weight | 12oz (340g) with boot |
| Battery Type | 1.5V "AA" Alkaline (2) |
| Battery Life | 200hrs Typical |
| OverInput Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | 3 Years |
Click on a category to view a selection of compatible accessories with the TPI 183A True RMS Digital Multimeter, 6-in-1.
