Versatile and easy to use, this state-of-the-art digital air velocity meter measures temperature and air velocity. In addition, it operates with both hotwire and vane-type probes.
Versatile and easy to use, this state-of-the-art digital air velocity meter measures temperature and air velocity. In addition, it operates with both hotwire and vane-type probes.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

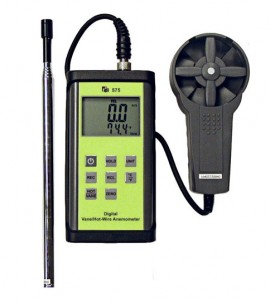

The 575 Digital Air Velocity Meter is a state of the art, easy to use instrument designed to provide temperature and air velocity readings.
Features
Applications
| Air Velocity (Low friction ball conventional twist wheel) |
80 to 4900 ft/min 0.4 to 25 m/s 40 to 3900 ft/min 0.2 to 20 m/s |
| Units of Measure | m/s, km/s, ft/min, mile/hr, knots/hr |
| Air Velocity Accuracy | ±(2% of rdg + 3 digits) vane >±(5% of rdg + 3 digits) hot wire |
| Temperature (Precision thermistor) | -5 to 175°F/-20 to 80°C |
| Temperature Accuracy | ±(1% of rdg + 1°F + 3 digits) |
| Units of Measure | °C /°F |
| CFM Calculation | Manual using formula |
| RS-232 Output | Yes |
| Min/Max Record | Yes |
| Operating Temperature (Base Unit) | 32 to 122°F |
| Operating Humidity (Base Unit) | <95% non-condensing</td> |
| Battery Type | 9V |
| Battery Life | 30 hours typical |
| Dimension W x L x H | 2.9" x 5.7" x 1.1" |
| Weight | 0.3lb |
| Air Velocity (Low friction ball conventional twist wheel) |
80 to 4900 ft/min 0.4 to 25 m/s 40 to 3900 ft/min 0.2 to 20 m/s |
| Units of Measure | m/s, km/s, ft/min, mile/hr, knots/hr |
| Air Velocity Accuracy | ±(2% of rdg + 3 digits) vane >±(5% of rdg + 3 digits) hot wire |
| Temperature (Precision thermistor) | -5 to 175°F/-20 to 80°C |
| Temperature Accuracy | ±(1% of rdg + 1°F + 3 digits) |
| Units of Measure | °C /°F |
| CFM Calculation | Manual using formula |
| RS-232 Output | Yes |
| Min/Max Record | Yes |
| Operating Temperature (Base Unit) | 32 to 122°F |
| Operating Humidity (Base Unit) | <95% non-condensing</td> |
| Battery Type | 9V |
| Battery Life | 30 hours typical |
| Dimension W x L x H | 2.9" x 5.7" x 1.1" |
| Weight | 0.3lb |
