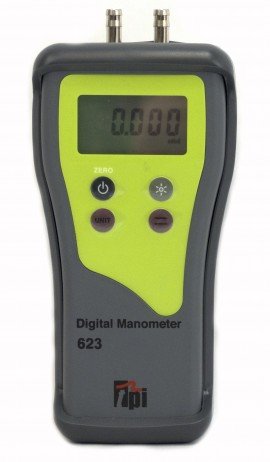

TPI 623 Digital Manometer, Dual Input, High Resolution

Model: 623 | UPC: 637623006234

TPI 623 Digital Manometer, Dual Input, High Resolution -

Downloads:

More TPI Products

Ask an Expert

TPI 623 Digital Manometer, Dual Input, High Resolution

Model: 623 | UPC: 637623006234

This manometer features a superior resolution with three decimal places.

This manometer features a superior resolution with three decimal places.

Sale Price $224.96 USD
Regular Price $249.95 USD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your TPI 623 Digital Manometer

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your TPI 623 Digital Manometer

TPI 623 Offers

Features

  • 0.001 inH20/kPa resolution to ±9.999 inH20/kPa input
  • High accuracy ±0.02 inH20 less than 2 inH20; 1% above 2 inH20
  • Temperature compensated
  • Overpressure protection to ±50 inH20
  • Trim mode to stabilize fluctuating pulse readings
  • Seven units of measure

Applications

  • Check for positive building pressure
  • Perform room to room pressure diagnostics
  • Test duct pressure and perform static pressure checks
  • Adjust appliance regulators
  • Test pressure switch on a 2-stage gas furnace in both positive and negative pressures

TPI 623 Specifications

Auto Range 0.0 to ±100 mbar
0.0 to ±40 inH20
Over Pressure 50 inH2O
Accuracy ±0.02 inH20(<2 inH20)
±1%rdg (>2inH20)
Relative Humidity 0 to 80%
Operating Temperature 32 to 104°F (0 to 40°C)
Auto Power Off After 20 minutes
Input Type Differential
Click here for complete specifications on the TPI 623

What's included with the TPI 623

  • Digital Manometer
  • 9V Alkaline Battery
  • Soft Carrying Pouch
  • Protective Boot with Magnets
  • 2 x Silicone Tubing with Brass Fittings
  • Instruction Manual

TPI 623 Dual Input Digital Manometer: Overview


This video will serve as an overview of this dual input digital manometer's main features. Additionally, this instrument features a superior resolution with three decimal places.

Ask a question about TPI 623 Digital Manometer, Dual Input, High Resolution

Customer Reviews for the TPI 623

TPI 623 Offers

Features

  • 0.001 inH20/kPa resolution to ±9.999 inH20/kPa input
  • High accuracy ±0.02 inH20 less than 2 inH20; 1% above 2 inH20
  • Temperature compensated
  • Overpressure protection to ±50 inH20
  • Trim mode to stabilize fluctuating pulse readings
  • Seven units of measure

Applications

  • Check for positive building pressure
  • Perform room to room pressure diagnostics
  • Test duct pressure and perform static pressure checks
  • Adjust appliance regulators
  • Test pressure switch on a 2-stage gas furnace in both positive and negative pressures
Show More...

TPI 623 Specifications

Auto Range 0.0 to ±100 mbar
0.0 to ±40 inH20
Over Pressure 50 inH2O
Accuracy ±0.02 inH20(<2 inH20)
±1%rdg (>2inH20)
Relative Humidity 0 to 80%
Operating Temperature 32 to 104°F (0 to 40°C)
Auto Power Off After 20 minutes
Input Type Differential
Click here for complete specifications on the TPI 623

What's included with the TPI 623

  • Digital Manometer
  • 9V Alkaline Battery
  • Soft Carrying Pouch
  • Protective Boot with Magnets
  • 2 x Silicone Tubing with Brass Fittings
  • Instruction Manual

TPI 623 Dual Input Digital Manometer: Overview


This video will serve as an overview of this dual input digital manometer's main features. Additionally, this instrument features a superior resolution with three decimal places.

Ask a question about TPI 623 Digital Manometer, Dual Input, High Resolution

Customer Reviews for the TPI 623
