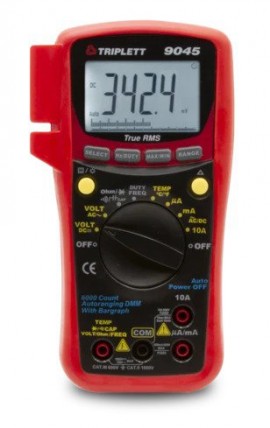

Drop-resistant and ergonomically designed, the high-performance true RMS auto-ranging multimeter features a 3 ¾ digit, 6000 count display that lights up for use in dark areas. Ideal for industrial and residential use, the meter measures 44 ranges including voltage, current, resistance, capacitance, frequency, and temperature. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Drop-resistant and ergonomically designed, the high-performance true RMS auto-ranging multimeter features a 3 ¾ digit, 6000 count display that lights up for use in dark areas. Ideal for industrial and residential use, the meter measures 44 ranges including voltage, current, resistance, capacitance, frequency, and temperature. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Versatile and user-friendly, the digital multimeter features a variety of measurement ranges and a rugged design.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
Applications
| Basic Accuracy | ±0.8% |
| Voltage | AC: 1 mV to 750 V DC: 0.1 mV to 1000 V |
| AC/DC Current | 0.1 μA to 10 A |
| Resistance | 0.1 &Ohm; to 60 M&Ohm; |
| Temperature | -4 to 1400°F (-20 to 750°C) |
| Capacitance | 10 nF to 4000 μF |
| Frequency | 0.001 Hz to 10 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Analog Bargraph | 61 segments |
| Safety Category | CAT III-600 V |
| Dimensions | 7 x 3.7 x 1.5" (178 x 94 x 38 mm) |
| Weight | 11 oz (312 g) |
Click on a category to view a selection of compatible accessories with the Triplett 9045-NIST True RMS Autoranging Multimeter, CAT III 600 V,.
| Basic Accuracy | ±0.8% |
| Voltage | AC: 1 mV to 750 V DC: 0.1 mV to 1000 V |
| AC/DC Current | 0.1 μA to 10 A |
| Resistance | 0.1 &Ohm; to 60 M&Ohm; |
| Temperature | -4 to 1400°F (-20 to 750°C) |
| Capacitance | 10 nF to 4000 μF |
| Frequency | 0.001 Hz to 10 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Analog Bargraph | 61 segments |
| Safety Category | CAT III-600 V |
| Dimensions | 7 x 3.7 x 1.5" (178 x 94 x 38 mm) |
| Weight | 11 oz (312 g) |
