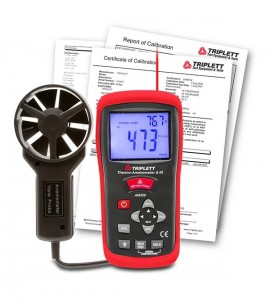

Triplett AM320-NIST Thermo-Anemometer, IR, includes Traceable Calibration Certificate

Model: AM320-NIST | UPC: 614395004071

Triplett AM320-NIST Thermo-Anemometer, IR, includes Traceable Calibration Certificate

Model: AM320-NIST | UPC: 614395004071

The Triplett Model AM320-NIST Thermo-Anemometer + IR measures Air Velocity up to 5906ft/min (30m/s), Air Flow (Volume) to 999,999 CFM/CMM, Air Temperature (140°F/60°C), plus non-contact Infrared Temperature for use in HVAC/R System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

The Triplett Model AM320-NIST Thermo-Anemometer + IR measures Air Velocity up to 5906ft/min (30m/s), Air Flow (Volume) to 999,999 CFM/CMM, Air Temperature (140°F/60°C), plus non-contact Infrared Temperature for use in HVAC/R System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Sale Price $437.24 USD
Regular Price $549.99 USD
Availability 2 to 3 Weeks
Quantity

Triplett AM320-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Air Velocity or Air Flow (volume) plus built-in IR Thermometer
  • Built-in non-contact IR Thermometer measures remote surface temperatures up to 500°F (260°C)
  • 8:1 distance to spot ratio and Laser Pointer
  • Simultaneous display of Air Flow or Air Velocity plus Ambient Temperature
  • Easy to set Area dimensions (ft² or m²) are stored in the meter’s internal memory for the next power on
  • 20 point average for Air Flow
  • Min/Max recalls highest and lowest readings
  • Data Hold freezes the display
  • Auto power off with disable

Triplett AM320-NIST Specifications

Air Velocity Range (resolution)
80 to 5906 ft/min (1ft/min)
0.4 to 30.00m/s (0.01m/s)
1.4 to 108.0km/h (0.1km/h)
0.9 to 67.2mph (0.1mph)
0.8 to 58.3 knots (0.1 knots)
Accuracy ±3%
Air Flow Range (resolution)
0 to 999,999CFM (0.1CFM)
0 to 999,999CMM (0.1CMM)
Air Temperature 14 to 140°F/-10 to 60°C (0.1°F/°C)
Accuracy ±6°F/3°C
Infrared Temperature -58 to 500°F/-50 to 260°C (0.1°F/°C)
Accuracy ±2%
Power 9V battery
Dimensions 7 x 2.9 x 1.2" (178 x 74 x 33 mm)
Weight 1.6 lbs (725 g)

What's included with the Triplett AM320-NIST

included

  • Thermo-Anemometer
  • Traceable Calibration Certificate with full Data and Uncertainties
  • Vane Sensor with 3.9' (120 cm) Cable
  • 9 V Battery
  • Protective Rubber Holster
  • 1-Year Warranty
