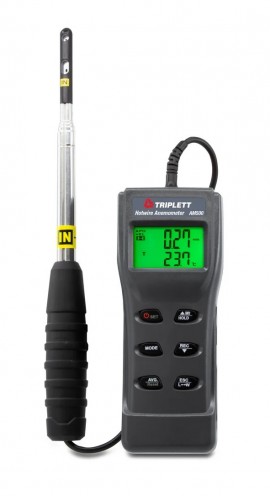

The Triplett AM500-NIST Hotwire Anemometer uses a strong and precise airflow and temperature sensor to provide very accurate readings. The compact telescoping probe head is ideal for ductwork. This micro-processor based design includes ATC (Automatic Temperature Compensation) and allows for accuracy on low flow (30ft/min) applications where traditional vane anemometers do not. It is a must-have for any HVAC/R Engineer or Technician. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
The Triplett AM500-NIST Hotwire Anemometer uses a strong and precise airflow and temperature sensor to provide very accurate readings. The compact telescoping probe head is ideal for ductwork. This micro-processor based design includes ATC (Automatic Temperature Compensation) and allows for accuracy on low flow (30ft/min) applications where traditional vane anemometers do not. It is a must-have for any HVAC/R Engineer or Technician. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| Air Velocity | Range (resolution) |
| Feet/Minute | 30.0 to 3937ft/min (0.1ft/min) |
| Meters/Second | 0.15 to 20.00m/s (0.01m/s) |
| Accuracy | ±5% |
| Air Volume | Range (resolution) |
| CFM / CMM | 0.1 to 99999CFM/CMM (0.1CFM/CMM) |
| CMH / I/s | 0.1 to 99999CMH/I/s (0.1CMH/I/s) |
| Air Temperature | 14.0 to 122.0°F (-10.0 to 50.0°C ) |
| Accuracy | ±1.8°F/1°C |
| Power | 4 x 1.5 V AAA |
| Dimensions | 6.9 x 2.6 x 1.3" (175 x 70 x 33 mm) |
| Weight | 11.7 oz (331 g) |
included
