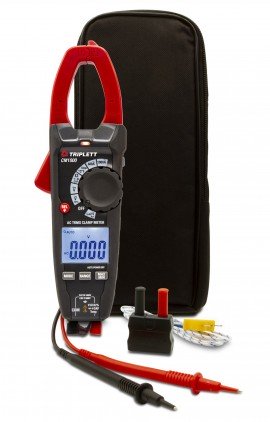

TRIPLETT CM1000-NIST AC True RMS Clamp Meter 1000 A, includes Traceable Calibration Certificate

Model: CM1000-NIST

TRIPLETT CM1000-NIST AC True RMS Clamp Meter 1000 A,-

Downloads:

More Triplett Products

Ask an Expert

TRIPLETT CM1000-NIST AC True RMS Clamp Meter 1000 A, includes Traceable Calibration Certificate

Model: CM1000-NIST

Features a certificate of traceability to N.I.S.T. with 1000 A current. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features a certificate of traceability to N.I.S.T. with 1000 A current. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Sale Price $178.87 USD
Regular Price $225.99 USD
Availability 2 to 3 Weeks
Quantity

Triplett CM1000-NIST Offers

The true RMS AC clamp meter 1000 A has an auto power off with disable.

Features

  • NIST Certification
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.4" (35 mm) clamp jaw
  • Built-in Non-Contact Voltage Detector with LED
  • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
  • Lo Z (impedance) mode for identifying ghost voltages
  • Peak voltage measurement with Min/Max
  • Data Hold freezes the display
  • Relative Mode for making comparisons to a stored reference value
  • Built-in Flashlight
  • cETLus listed
  • 1 year warranty

Triplett CM1000-NIST Specifications

Specifications
Display counts 6000 count
AC Current 1000 A
ACA Accuracy ±2.8%
AC/DC Voltage 1000 V
Resistance 60 MΩ
Temperature -4 to 1832°F (-20 to 1000°C)
Capacitance 100 mF
Frequency 100 kHz
Duty Cycle 10 to 90%
Continuity <50Ω
Lo Pass Filter (LPF) Yes
LoZ Mode Yes
NCV Detector >90 V
Inrush Current 100 ms
Safety Category CAT III-600 V
Dimensions 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2 mm)
Weight 10.3 oz (290.6 g)
Click here for complete specifications on the Triplett CM1000-NIST

What's included with the Triplett CM1000-NIST

  • True RMS AC Clamp Meter 1000 A
  • Test leads
  • Type K thermocouple bead probe
  • 3 x AAA batteries
  • Carrying case

Ask a question about TRIPLETT CM1000-NIST AC True RMS Clamp Meter 1000 A,

Customer Reviews for the Triplett CM1000-NIST

Triplett CM1000-NIST Offers

The true RMS AC clamp meter 1000 A has an auto power off with disable.

Features

  • NIST Certification
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.4" (35 mm) clamp jaw
  • Built-in Non-Contact Voltage Detector with LED
  • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
  • Lo Z (impedance) mode for identifying ghost voltages
  • Peak voltage measurement with Min/Max
  • Data Hold freezes the display
  • Relative Mode for making comparisons to a stored reference value
  • Built-in Flashlight
  • cETLus listed
  • 1 year warranty
Show More...

Triplett CM1000-NIST Specifications

Specifications
Display counts 6000 count
AC Current 1000 A
ACA Accuracy ±2.8%
AC/DC Voltage 1000 V
Resistance 60 MΩ
Temperature -4 to 1832°F (-20 to 1000°C)
Capacitance 100 mF
Frequency 100 kHz
Duty Cycle 10 to 90%
Continuity <50Ω
Lo Pass Filter (LPF) Yes
LoZ Mode Yes
NCV Detector >90 V
Inrush Current 100 ms
Safety Category CAT III-600 V
Dimensions 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2 mm)
Weight 10.3 oz (290.6 g)
Click here for complete specifications on the Triplett CM1000-NIST

What's included with the Triplett CM1000-NIST

  • True RMS AC Clamp Meter 1000 A
  • Test leads
  • Type K thermocouple bead probe
  • 3 x AAA batteries
  • Carrying case

Ask a question about TRIPLETT CM1000-NIST AC True RMS Clamp Meter 1000 A,

Customer Reviews for the Triplett CM1000-NIST
