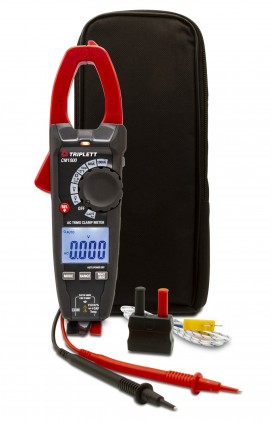

Measures AC up to 1000 A without breaking the circuit by clamping around a single conductor and provides better accuracy when measuring non-sinusoidal or noisy waveforms with 100 mF capacitance.
Measures AC up to 1000 A without breaking the circuit by clamping around a single conductor and provides better accuracy when measuring non-sinusoidal or noisy waveforms with 100 mF capacitance.
The true RMS AC clamp meter 1000 A has an auto power off with disable.
Features
| Specifications | |
| Display counts | 6000 count |
| AC Current | 1000 A |
| ACA Accuracy | ±2.8% |
| DC Current | 1000 A |
| AC/DC Voltage | 1000 V |
| Resistance | 60 MΩ |
| Temperature | -4 to 1832°F (-20 to 1000°C) |
| Capacitance | 100 mF |
| Frequency | 100 kHz |
| Duty Cycle | 10 to 90% |
| Continuity | <50Ω |
| Lo Pass Filter (LPF) | Yes |
| LoZ Mode | Yes |
| NCV Detector | >90 V |
| Inrush Current | 100 ms |
| Safety Category | CAT III-600 V |
| Dimensions | 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2 mm) |
| Weight | 11.5 oz (327 g) |
