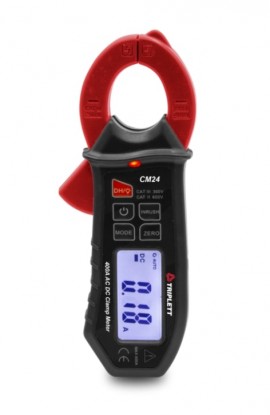

Triplett CM24 TRMS AC/DC Mini Clamp Multimeter with Inrush, 400 A

Model: CM24 | UPC: 614395002503

Triplett CM24 TRMS AC/DC Mini Clamp Multimeter with Inrush, 400 A

Model: CM24 | UPC: 614395002503

The TRMS mini clamp meter features Inrush and backlit LCD with 4000 count measurement readings. It can measure up to 400 A AC and DC current with better accuracy non-sinusoidal or noisy waveforms measurements.

The TRMS mini clamp meter features Inrush and backlit LCD with 4000 count measurement readings. It can measure up to 400 A AC and DC current with better accuracy non-sinusoidal or noisy waveforms measurements.

Sale Price $69.95 USD
Regular Price $87.99 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CM24 TRMS AC/DC Mini Clamp Multimeter with Inrush

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CM24 TRMS AC/DC Mini Clamp Multimeter with Inrush

Triplett CM24 Offers

The TRMS miniature clamp meter has the ability to capture Inrush or the instantaneous surge current when the power equipment is first turned on. It measures up to 400 A AC/DC while clamping around a single conductor not needing to break the circuit. Using a clamp meter allows you to save time while avoiding damage to the circuit compared to the typical multimeters.

Features

  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Built-in NCV detector with LED
  • 4000 count backlit LCD
  • DC zero function
  • Data Hold Freezes the display
  • Overrange indication
  • Auto power off
  • CAT III-300V

Triplett CM24 Specifications

AC Current 50 to 60 Hz 40.00 A ±(2.5% + 10d)
400.0 A ±(2.8% + 8d)
AC Current 50 to 400 Hz 40.00 A ±(2.5% + 10d)
400.0 A ±(2.8% + 8d)
DC Current 40.00 A ±(2.5% + 10d)
400.0 A ±(2.8% + 8d)
NCV Detector Range 0 to 600 VAC
Power AAA batteries (2)
Safety Category CAT III 300V
Dimensions 6 x 2.4 x 1.1"” (152 x 60 x 28 mm)
Weight 0.3 lb (134g)
Click here for complete specifications on the Triplett CM24

What's included with the Triplett CM24

  • Clamp Meter
  • 2 x Batteries
  • Carrying Case
