GEM CS-TK00 Universal Compression Tool Kit with wire cutter, connectors, and cable tester

Model: CS-TK00 | UPC: 614395060022

Terminate BNC, RCA, and F compression connectors from virtually all connector suppliers with the universal compression tool kit, which comes complete with a wire cutter, connectors, as well as a cable tester.

Terminate BNC, RCA, and F compression connectors from virtually all connector suppliers with the universal compression tool kit, which comes complete with a wire cutter, connectors, as well as a cable tester.

Sale Price $196.34 USD
Regular Price $230.99 USD
Availability 3 Days
Quantity

Key Features

  • Terminates BNC, RCA, and F compression connectors from virtually all connector suppliers
  • Terminates RG59, RG59 Plenum, RG6, RG6 Plenum, RG6 Dual Shield, RG6 Tri Shield, and RG6 Quad Shield
  • Once the connector is properly installed, it cannot be pulled off, ever!

CTX200 Cable Tester

  • Performs a TIA568 test on CAT5/6 network cable (RJ45) with instant PASS/FAIL results - opens/shorts, reversals, split pairs, and continuity
  • Includes a built-in tone generator for tracing and troubleshooting
  • Tests both RJ45-CAT5/6 and coax cables with pass/fail results in 1 second
  • Complete TIA568 test performed — Continuity, opens/shorts, reversals and split pairs
  • Each pair’s status is highlighted
  • Tone mode for tracing and troubleshooting
  • Low battery indication and Auto-off (12 seconds) battery saver

GEM CS-TK00 Specifications

CTX200
Input Voltage/Current Maximum 5 VDC, 20 mA
Power 9 V battery for toner
Dimensions 2.8 x 1.4 x 4.1" (70 x 36 x 104 mm)
Weight 4 oz (112 g)
Click here for complete specifications on the GEM CS-TK00

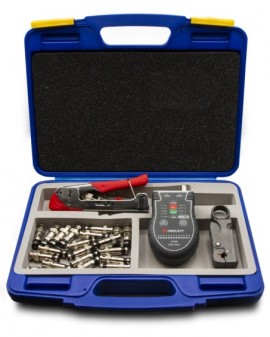

What's included with the GEM CS-TK00

  • Universal BNC Connectors
  • GWC Wire Cutter
  • Universal Compression Tool
  • CTX200 Cable Tester
  • Carrying Case
