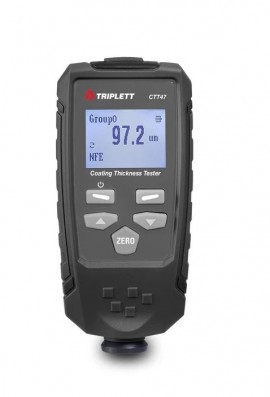

This coating thickness tester delivers precise coating measurements from 0 to 53 mils (0 to 1350 µm) with smart automatic recognition of both ferrous and non-ferrous substrates. Featuring USB connectivity for data transfer, it’s ideal for quality control, inspection, and industrial coating applications.
This coating thickness tester delivers precise coating measurements from 0 to 53 mils (0 to 1350 µm) with smart automatic recognition of both ferrous and non-ferrous substrates. Featuring USB connectivity for data transfer, it’s ideal for quality control, inspection, and industrial coating applications.
Features
Applications
| Resolution | 0.004 mils (0.1μm) |
| Accuracy | ±2.5% |
| Minimum Curvature Radius | Ferrous Probe (magnetic induction): 59.06 mils (1.5 mm) Non-Ferrous Probe (eddy current): 118.1 mils (3 mm) |
| Minimum Diameter | Ferrous Probe (magnetic induction): 275.6 mils (7 mm) Non-Ferrous Probe (eddy current): 196.9 mils (5 mm) |
| Minimum Thickness | Ferrous Probe (magnetic induction): 19.69 mils (0.5 mm) Non-Ferrous Probe (eddy current): 11.81 mils (0.3 mm) |
| Sample Rate | Selectable 1 second to 24 hours |
| Measuring Range | 0 to 53 mils (0 to 1350 μm) |
| PC Interface | USB port |
| Power | 2 x AAA batteries |
| Dimensions | 4.7 x 2.4 x 1.25" (120 x 62 x 32 mm) |
| Weight | 6.8 oz (175 g) |
