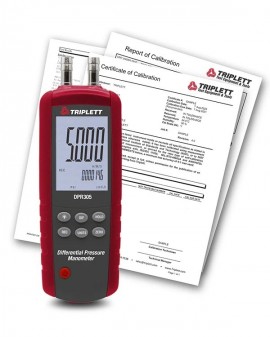

Compact and easy to use, this differential pressure manometer measures differential pressure and gauge to ±5 psi. With a large backlit display and quick‐disconnect fittings, use one or two inputs for various measuring options. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Compact and easy to use, this differential pressure manometer measures differential pressure and gauge to ±5 psi. With a large backlit display and quick‐disconnect fittings, use one or two inputs for various measuring options. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
For added versatility, use one input to measure the gauge pressure of a single source or both inputs to measure the differential pressure between two points of a single source or between two sources, revealing which has the higher pressure and the difference between them.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
Applications
| inH2O | 138.4 inH2O (0.01 inH2O) |
| Psi | 5.000 psi (0.001 psi) |
| Mbar | 344.7 mbar (0.1 mbar) |
| KPa | 34.47 kPa (0.01 kPa) |
| InH2O | 10.18 inH2O (0.001 inH2O) |
| MmHg | 258.6 mmHg (0.1 mmHg) |
| Oz/in2 | 80.00 oz/in2 (0.01 oz/in2) |
| ft/H2O | 11.53 ft/H2O (0.001 ft/H2O) |
| cm/H2O | 351.5 cmH2O (0.1 cmH2O) |
| Kg/cm2 | 0.352 Kg/cm2 (0.001 Kg/cm2) |
| Bar | 0.345 bar (0.001 bar) |
| Accuracy | ±0.3% FS |
| Max. Pressure | 20 psi |
| Power | 3 x AAA batteries or USB |
| Dimensions | 7.2 x 2.4 x 1.1" (182 x 62 x 28 mm) |
| Weight | 8.4 oz (237 g) |
| inH2O | 138.4 inH2O (0.01 inH2O) |
| Psi | 5.000 psi (0.001 psi) |
| Mbar | 344.7 mbar (0.1 mbar) |
| KPa | 34.47 kPa (0.01 kPa) |
| InH2O | 10.18 inH2O (0.001 inH2O) |
| MmHg | 258.6 mmHg (0.1 mmHg) |
| Oz/in2 | 80.00 oz/in2 (0.01 oz/in2) |
| ft/H2O | 11.53 ft/H2O (0.001 ft/H2O) |
| cm/H2O | 351.5 cmH2O (0.1 cmH2O) |
| Kg/cm2 | 0.352 Kg/cm2 (0.001 Kg/cm2) |
| Bar | 0.345 bar (0.001 bar) |
| Accuracy | ±0.3% FS |
| Max. Pressure | 20 psi |
| Power | 3 x AAA batteries or USB |
| Dimensions | 7.2 x 2.4 x 1.1" (182 x 62 x 28 mm) |
| Weight | 8.4 oz (237 g) |
