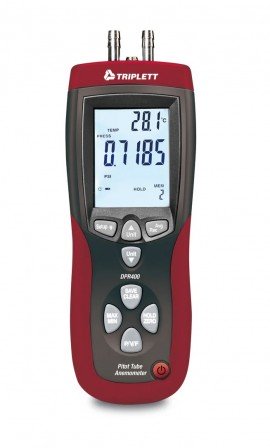

A versatile meter that measures pressure, air velocity, air flow, and temperature. It can display gauge pressure from a single source or differential pressure between two points, making it ideal for HVAC diagnostics and airflow troubleshooting. It delivers reliable performance across a wide temperature range.
A versatile meter that measures pressure, air velocity, air flow, and temperature. It can display gauge pressure from a single source or differential pressure between two points, making it ideal for HVAC diagnostics and airflow troubleshooting. It delivers reliable performance across a wide temperature range.
Features
Applications
| Manometer Range (Resolution) | 0.7252psi (0.0001psi) 50mbar (0.01mbar) 20.07"H2O (0.01"H2O) 509.8 mmH2O (0.1 mmH2O) 5000Pa (1Pa) |
| Manometer Accuracy | ±0.3% FS0 |
| Maximum Pressure | 10psi |
| Air Velocity Range (Resolution) | 200 to 15733'/min (1'/min) 1 to 80 m/s (0.01 m/s) 3.6 to 288 km/h (0.1km/h) 2.24 to 178.66 mph (0.01 mph) 2 to 154.6 knots (0.1 knots) |
| Air Velocity Accuracy | ±2.5% |
| Air Flow Range (Resolution) | 0 to 99.999 CFM (0.0001 CFM) 0 to 99.999 CMM (0.001 CMM) |
| Air Temperature Range | 32 to 122°F (0 to 50°C) (0.1°F/°C) |
| Air Temperature Accuracy | ±2°F/1°C |
| PC Interface | USB |
| Data Acquisition | Real-Time data viewed on your PC |
| Power | 9V battery |
| Meter Dimensions | 8 x 3 x 2" (203 x 75 x 50 mm) |
| Meter Weight | 10.6 oz (300 g) |
| Pitot Tube Dimensions | 13 x 8" (329 x 201 mm) |
| Pitot Tube Diameter | 0.3" (8 mm) |
| Pitot Tube Weight | 5.3 oz (150 g) |
| Manometer Range (Resolution) | 0.7252psi (0.0001psi) 50mbar (0.01mbar) 20.07"H2O (0.01"H2O) 509.8 mmH2O (0.1 mmH2O) 5000Pa (1Pa) |
| Manometer Accuracy | ±0.3% FS0 |
| Maximum Pressure | 10psi |
| Air Velocity Range (Resolution) | 200 to 15733'/min (1'/min) 1 to 80 m/s (0.01 m/s) 3.6 to 288 km/h (0.1km/h) 2.24 to 178.66 mph (0.01 mph) 2 to 154.6 knots (0.1 knots) |
| Air Velocity Accuracy | ±2.5% |
| Air Flow Range (Resolution) | 0 to 99.999 CFM (0.0001 CFM) 0 to 99.999 CMM (0.001 CMM) |
| Air Temperature Range | 32 to 122°F (0 to 50°C) (0.1°F/°C) |
| Air Temperature Accuracy | ±2°F/1°C |
| PC Interface | USB |
| Data Acquisition | Real-Time data viewed on your PC |
| Power | 9V battery |
| Meter Dimensions | 8 x 3 x 2" (203 x 75 x 50 mm) |
| Meter Weight | 10.6 oz (300 g) |
| Pitot Tube Dimensions | 13 x 8" (329 x 201 mm) |
| Pitot Tube Diameter | 0.3" (8 mm) |
| Pitot Tube Weight | 5.3 oz (150 g) |
