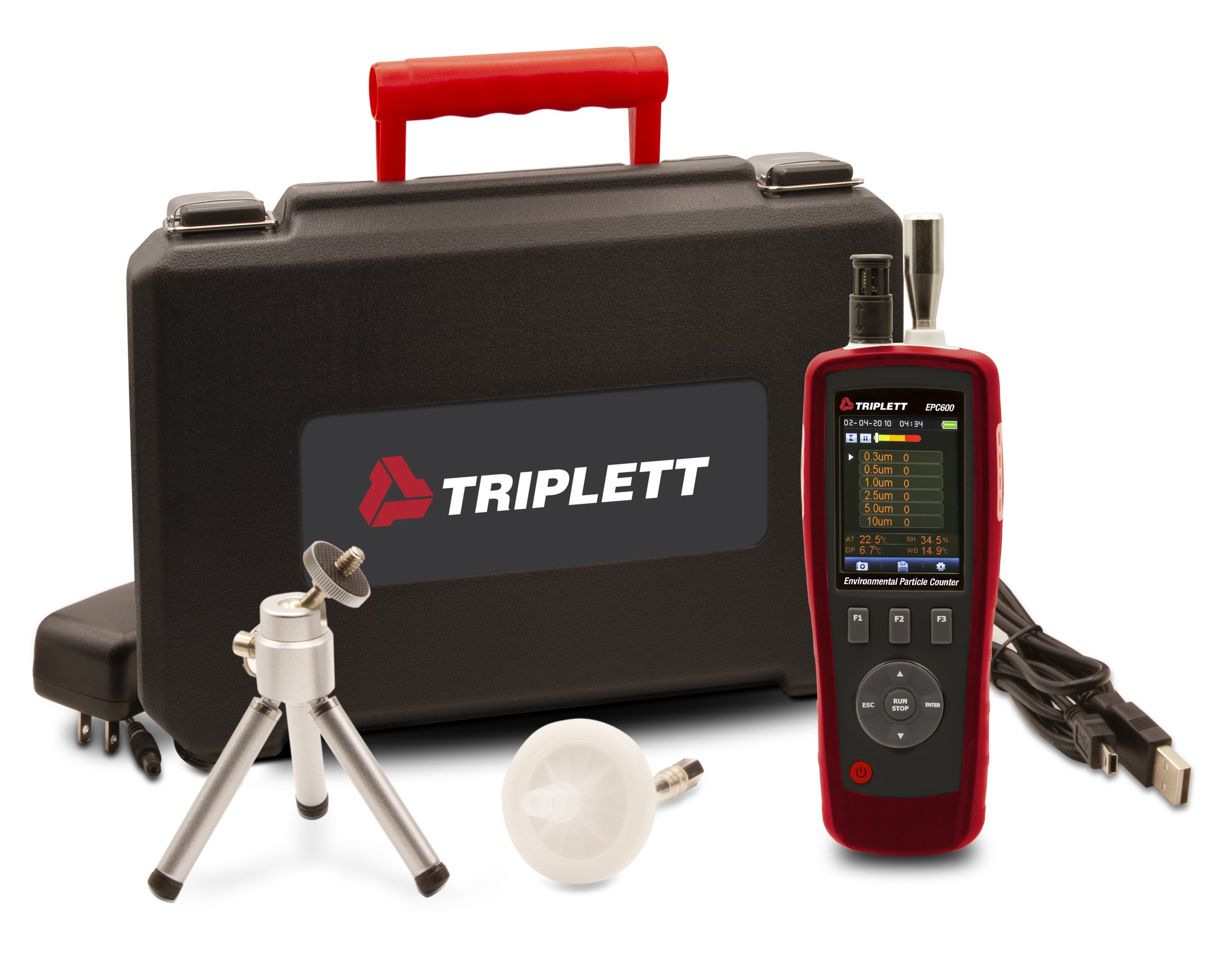

Effortlessly measure six channels of particle sizes down to 0.3 µm with this environmental particle counter that displays the results on its 2.8" color TFT display. Features a built-in camera, this unit also measures air temperature, humidity, dew point, and wet bulb.
Effortlessly measure six channels of particle sizes down to 0.3 µm with this environmental particle counter that displays the results on its 2.8" color TFT display. Features a built-in camera, this unit also measures air temperature, humidity, dew point, and wet bulb.
Store up to 5000 records with date/time, counts, temperature, humidity, sample volume, alarms, and location label. With a USB interface to connect to PC, this unit also features user-selectable sample time, count data, and programmable delay, Min/Max/Avg/Diff recording, plus readout in five languages.
Features
Applications
| Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10 µm |
| Flow Rate | 0.1 ft3 (2.83 l/min) internal pump |
| Count Mode | Cumulative, differential, concentration |
| Coincidence loss | 5%, 2,000,000 particles per ft3 |
| Air Temperature Range | 32 to 122°F (0 to 50°C) Accuracy: ±1°F/0.5°C |
| Humidity | Range: 0 to 100% RH Accuracy: ±3% |
| Dew Point | 32 to 122°F (0 to 50°C) |
| Wet Bulb | 32 to 122°F (0 to 50°C) |
| Built-in Camera | Record images (JPEG) and video (3GP) |
| Memory | 74 MB internal; microSD card slot 8 GB max |
| PC Interface | USB |
| Power | AC adapter/charger 7.4 V rechargeable battery |
| Dimensions | 9.6 x 3 x 2.2" (243 x 74 x 55 mm) |
| Weight | 20.1 oz (570 g) |
Click on a category to view a selection of compatible accessories with the Triplett EPC600 Environmental Particle Counter.
