Triplett HS-TK High-Speed Pass Thru RJ45 Tool Kit

Model: HS-TK | UPC: 614395060039

Triplett HS-TK High-Speed Pass Thru RJ45 Tool Kit-

Downloads:

More Triplett Products

Ask an Expert

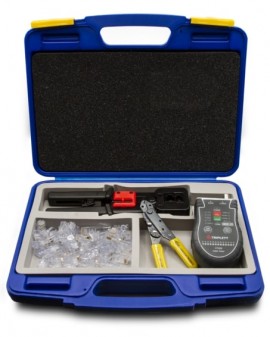

Triplett HS-TK High-Speed Pass Thru RJ45 Tool Kit

Model: HS-TK | UPC: 614395060039

Simplify twisted pair termination and easily verify proper wiring order with the high-speed pass-thru RJ45 tool kit, which includes the HS-CT crimp tool, 50 CAT5-HSP connectors, a wire cutter, and an RJ45 cable tester.

Simplify twisted pair termination and easily verify proper wiring order with the high-speed pass-thru RJ45 tool kit, which includes the HS-CT crimp tool, 50 CAT5-HSP connectors, a wire cutter, and an RJ45 cable tester.

Sale Price $148.66 USD
Regular Price $186.99 USD
Availability 1 Week
Quantity

Key Features

  • Simplify twisted pair terminations by allowing the wires to slide through holes out the front of the connector. Easily verify the proper wiring order with a visual inspection
  • Cut, strip and crimp quickly and accurately every time. Crimp tool simultaneously crimps and cuts. Wires will be properly flush to the front of the connector
  • Wires will be properly flush to the front of the connector

CTX200 Cable Tester

  • Performs a TIA568 test on CAT5/6 network cable (RJ45) with instant PASS/FAIL results - opens/shorts, reversals, split pairs, and continuity
  • Includes a built-in tone generator for tracing and troubleshooting
  • Tests both RJ45-CAT5/6 and coax cables with pass/fail results in 1 second
  • Complete TIA568 test performed — Continuity, opens/shorts, reversals and split pairs
  • Each pair’s status is highlighted
  • Tone mode for tracing and troubleshooting
  • Low battery indication and Auto-off (12 seconds) battery saver

Triplett HS-TK Specifications

CTX200
Input Voltage/Current Maximum 5 VDC, 20 mA
Power 9 V battery for toner
Dimensions 2.8 x 1.4 x 4.1" (70 x 36 x 104 mm)
Weight 4 oz (112 g)
Click here for complete specifications on the Triplett HS-TK

What's included with the Triplett HS-TK

  • Crimp Tool
  • 50 x CAT5-HSP Connectors
  • Wire Cutter
  • Cable Tester

Ask a question about Triplett HS-TK High-Speed Pass Thru RJ45 Tool Kit

Customer Reviews for the Triplett HS-TK

Key Features

  • Simplify twisted pair terminations by allowing the wires to slide through holes out the front of the connector. Easily verify the proper wiring order with a visual inspection
  • Cut, strip and crimp quickly and accurately every time. Crimp tool simultaneously crimps and cuts. Wires will be properly flush to the front of the connector
  • Wires will be properly flush to the front of the connector

CTX200 Cable Tester

  • Performs a TIA568 test on CAT5/6 network cable (RJ45) with instant PASS/FAIL results - opens/shorts, reversals, split pairs, and continuity
  • Includes a built-in tone generator for tracing and troubleshooting
  • Tests both RJ45-CAT5/6 and coax cables with pass/fail results in 1 second
  • Complete TIA568 test performed — Continuity, opens/shorts, reversals and split pairs
  • Each pair’s status is highlighted
  • Tone mode for tracing and troubleshooting
  • Low battery indication and Auto-off (12 seconds) battery saver
Show More...

Triplett HS-TK Specifications

CTX200
Input Voltage/Current Maximum 5 VDC, 20 mA
Power 9 V battery for toner
Dimensions 2.8 x 1.4 x 4.1" (70 x 36 x 104 mm)
Weight 4 oz (112 g)
Click here for complete specifications on the Triplett HS-TK

What's included with the Triplett HS-TK

  • Crimp Tool
  • 50 x CAT5-HSP Connectors
  • Wire Cutter
  • Cable Tester

Ask a question about Triplett HS-TK High-Speed Pass Thru RJ45 Tool Kit

Customer Reviews for the Triplett HS-TK
