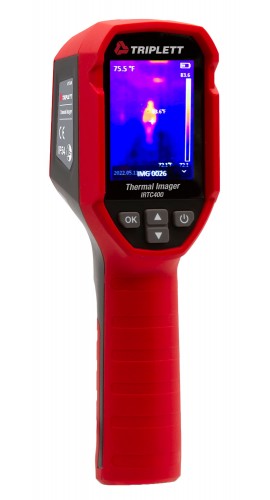

Use this thermal imaging camera for preventative maintenance and troubleshooting electrical and HVAC/R systems. In addition, it has a thermal detector resolution of 120 x 90 pixels with ≤60 mk thermal sensitivity that displays center spot and high-low temperature tracking on a 2.4" (61 mm) 320 x 240 color TFT display.
Use this thermal imaging camera for preventative maintenance and troubleshooting electrical and HVAC/R systems. In addition, it has a thermal detector resolution of 120 x 90 pixels with ≤60 mk thermal sensitivity that displays center spot and high-low temperature tracking on a 2.4" (61 mm) 320 x 240 color TFT display.
Easy to use, this thermal imager has a four-button menu, user-programmable audible and visual high/low-temperature alarms, a real-time clock/calendar, a built-in LED work light, and auto power off with disable. In addition, it allows you to use the onboard-image gallery to view your images (.bmp) or transfer them to your PC via a USB interface that is used to recharge the thermal imager.
Features
Applications
| Temperature Range | -4 to 752°F (-20 to 400°C) |
| Resolution | IR: 120 x 90 pixels (10,800) Display: 320 x 240 pixels |
| Thermal Sensitivity/NETD | ≤60 mk |
| Basic Accuracy | ±2% or ±2°C |
| Response Time | 150 ms |
| FOV | 50 x 38° |
| Minimum Focus Distance | 4" (0.1 m) focus-free |
| Spectral Response | 8 to 14 μm |
| Emissivity | Adjustable 0.1 to 1 |
| Screen Size | 2.4" (61 mm) TFT |
| Viewing Angle | 80° |
| Color Display Palettes | Ironbow, rainbow, white-hot, black-hot, rainbow HC, lava |
| Image | Frequency: 25 Hz Storage: 32 GB SD card (BMP format) Gallery: Yes |
| PC Interface | USB |
| Power | Rechargeable 3.7 V lithium-ion battery |
| Dimensions | 7.8 x 2.8 x 2.4" (197 x 72 x 60 mm) |
| Weight | 11 oz (310 g) |
Click on a category to view a selection of compatible accessories with the Triplett IRTC400 Thermal Imaging Camera, 120 x 90, -4 to 752°F.
