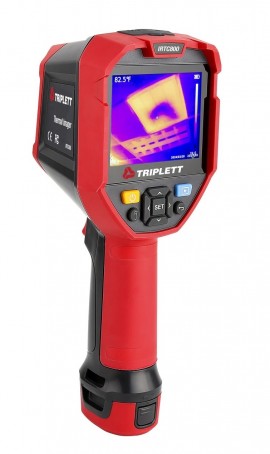

Built for professional-grade thermal inspections, this thermal imaging camera features a high-resolution 320 × 240 thermal detector and a wide 56 × 42° field of view. With a built-in 2 MP visible light camera, multiple imaging modes, and advanced measurement tools—including center spot, three manual spots, three areas, one line analysis, and auto hot/cold markers—it displays clear results on a 3.5" focus-free color touchscreen with 640 × 480 resolution.
Built for professional-grade thermal inspections, this thermal imaging camera features a high-resolution 320 × 240 thermal detector and a wide 56 × 42° field of view. With a built-in 2 MP visible light camera, multiple imaging modes, and advanced measurement tools—including center spot, three manual spots, three areas, one line analysis, and auto hot/cold markers—it displays clear results on a 3.5" focus-free color touchscreen with 640 × 480 resolution.
The Triplett Model IRTC800 Thermal Imager can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots.
Additional features include manual fusion (0 to 100%) controls the mix ratio between the infrared and visible image, easy-to-use menu in 5 languages (English, Spanish, French, German, Russian), real time clock/calendar, and Auto power off with disable. Use the on-board picture gallery to view images (jpg) or transfer them to your PC via USB interface. You can also live stream to your PC.
Features
Applications
| Temperature Range | -40 to 752°F (-40 to 400°C) |
| IR Resolution | 320 x 240 pixels (76,800) |
| Thermal Sensitivity/NETD | ≤65mk |
| Basic Accuracy | ±2% or ±2°C (3.6°F) |
| FOV | 56° x 42° |
| Minimum Focus Distance | 11.8" (0.3 m) Focus-free |
| Image Frequency | 9 Hz |
| Spectral Response | 8 to 14 μm |
| Emissivity | Adjustable 0.01 to 1.0 |
| Visible Light Resolution | 2MP (1600 x 1200) |
| Image Display Mode | Infrared/Visible Light/PIP/Fusion |
| Screen Size | 3.5" (89 mm) Color Touchscreen |
| Display Resolution | 640 x 480 pixels |
| Color Display Palettes | Iron, rainbow hc, rainbow, lava, white hot, red hot, black hot |
| Isotherm | Auto, Ratio, Below, Above, Section, Manual |
| Digital Zoom | 2X, 4X |
| Image Storage | (32GB) JPG |
| Image Gallery | Yes |
| PC Interface | SD card/USB |
| Power | Rechargeable Lithium Ion |
| Dimensions | 10.2 x 3.8 x 3.9" (260 x 97 x 99 mm) |
| Weight | 1.4 lbs (300 g) |
