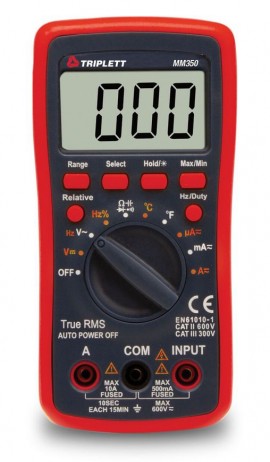

Accurate and compact, the auto-ranging multimeter measures AC/DC voltage and current, AC/DC μA current, resistance, temperature, capacitance, frequency, diode, and continuity. With a 3 ½ digit, 4000 count backlit LCD, the meter also features data hold, relative mode, minimum/maximum, auto power-off, and Low battery indicator.
Accurate and compact, the auto-ranging multimeter measures AC/DC voltage and current, AC/DC μA current, resistance, temperature, capacitance, frequency, diode, and continuity. With a 3 ½ digit, 4000 count backlit LCD, the meter also features data hold, relative mode, minimum/maximum, auto power-off, and Low battery indicator.
Features
| Display Counts | 4000 count |
| Basic Accuracy | ±0.8% |
| AC/DC | Voltage: 600 V Current: 10 A μA Current: 400 μA |
| Resistance | 40 MΩ |
| Temperature | -40 to 2000°F (-40 to 1370°C) |
| Capacitance | 2 mF |
| Frequency | 5 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <30 Ω |
| Power | 3 x AAA batteries |
| Dimensions | 5.7 x 2.8 x 1.4" (145 x 70 x 35 mm) |
| Weight | 5.5 oz (157 g) |
| Display Counts | 4000 count |
| Basic Accuracy | ±0.8% |
| AC/DC | Voltage: 600 V Current: 10 A μA Current: 400 μA |
| Resistance | 40 MΩ |
| Temperature | -40 to 2000°F (-40 to 1370°C) |
| Capacitance | 2 mF |
| Frequency | 5 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <30 Ω |
| Power | 3 x AAA batteries |
| Dimensions | 5.7 x 2.8 x 1.4" (145 x 70 x 35 mm) |
| Weight | 5.5 oz (157 g) |
