Designed for precise process calibration, this calibrator delivers adjustable 0–20 mA and 4–20 mA outputs with % readout, along with a 0 to 10 V DC voltage range and 0.05% accuracy. Suitable for both benchtop and field use, it features automatic sawtooth or triangular current step functions, low-battery indication, auto power-off, and a built-in flashlight.
Designed for precise process calibration, this calibrator delivers adjustable 0–20 mA and 4–20 mA outputs with % readout, along with a 0 to 10 V DC voltage range and 0.05% accuracy. Suitable for both benchtop and field use, it features automatic sawtooth or triangular current step functions, low-battery indication, auto power-off, and a built-in flashlight.

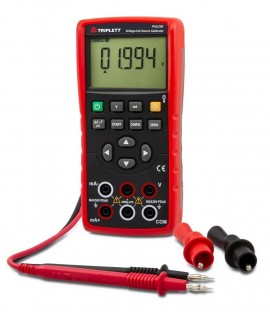

The Triplett Model PCAL200 DC Voltage and Current Source is a versatile tool suitable for various applications in fields such as electronics testing, calibration, research, and development.
Features
Applications
| Source | |
| DC | Voltage: 10 V (0.001 V) Accuracy: ±(0.05% + 2mV) Current: 30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA) |
| Maximum Load | 1000 Ω at 20 mA |
| General Specifications | |
| Power | 3 x AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51 mm) |
| Weight | 1 lbs (454 g) |
| Source | |
| DC | Voltage: 10 V (0.001 V) Accuracy: ±(0.05% + 2mV) Current: 30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA) |
| Maximum Load | 1000 Ω at 20 mA |
| General Specifications | |
| Power | 3 x AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51 mm) |
| Weight | 1 lbs (454 g) |
