Provides constant voltage or current operation with fine and coarse adjustment for both and can be used for bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyist with 160 W output power.
Provides constant voltage or current operation with fine and coarse adjustment for both and can be used for bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyist with 160 W output power.

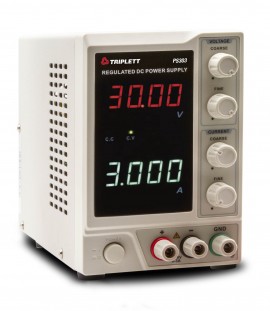

The power supply 30 V / 5 A DC has a reverse polarity protection.
Features
Applications
| Specifications | |
| Output Voltage | 0 to 30.00 V |
| Output Current | 0 to 5.000 A |
| Output Power | 160 W |
| Load Regulation | <0.01% + 5 mV, <0.1% + 10 mA |
| Line Regulation | <0.01% + 3 mV, <0.1% + 3 mA |
| Ripple and Noise | ≤2 mVrms, ≤3 mArms |
| Display | Dual 4-Digit LED (voltage and current) |
| Power | 110 to 220 VAC, 50/60 Hz |
| Dimensions | 4.1 x 6.1 x 8.3" (105 x 155 x 210 mm) |
| Weight | 8.8 lbs (4 kg) |
