Capable to read in either W/m2 or BTU/(ft2*h), this light meter offers flexible measurement options. In addition, its swift 0.25-second response time and cosine corrected silicon photodiode sensor offer accurate and reliable results.
Capable to read in either W/m2 or BTU/(ft2*h), this light meter offers flexible measurement options. In addition, its swift 0.25-second response time and cosine corrected silicon photodiode sensor offer accurate and reliable results.

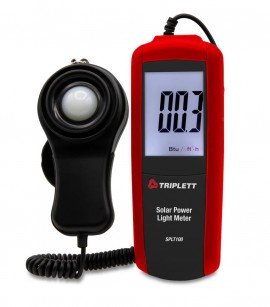

The Triplett Model SPLT100 Solar Power Light Meter is an essential tool designed for measuring solar power levels to ensure maximum efficiency in your solar panel installation.
This versatile device also finds use in various applications like agriculture, meteorology, optical and physics laboratories, and high-performance window manufacturing for the automotive and building industries.
The meter has an auto/manual range selection, Min/Max function to record the highest and lowest readings over time, and a Data Hold feature to freeze the display for easy viewing. It also features a low battery indicator to alert you when it's time for a battery replacement.
Features
Applications
| Display | 2000 count 3-1/2 digit backlit LCD |
| Range | 1999 W/m2 634 BTU/(ft2*h) |
| Resolution | 1 W/m2 1 BTU/(ft2*h) |
| Accuracy | ±10 W/m2; ±3 BTU/(ft2*h) or 5% whichever is greater in direct sunlight |
| Spectral Response | 840 to 1100 nm |
| Sampling Time | approximately 0.25 second |
| Power | 3 x AAA batteries |
| Dimensions | 6.4 x 2.5 x 1.1" (162 x 63 x 28 mm) |
| Weight | 8.8 oz (250 g) |
| Display | 2000 count 3-1/2 digit backlit LCD |
| Range | 1999 W/m2 634 BTU/(ft2*h) |
| Resolution | 1 W/m2 1 BTU/(ft2*h) |
| Accuracy | ±10 W/m2; ±3 BTU/(ft2*h) or 5% whichever is greater in direct sunlight |
| Spectral Response | 840 to 1100 nm |
| Sampling Time | approximately 0.25 second |
| Power | 3 x AAA batteries |
| Dimensions | 6.4 x 2.5 x 1.1" (162 x 63 x 28 mm) |
| Weight | 8.8 oz (250 g) |
