Measure the length of wire and other materials with this measuring machine. It features steel inlet and outlet guides.
Measure the length of wire and other materials with this measuring machine. It features steel inlet and outlet guides.

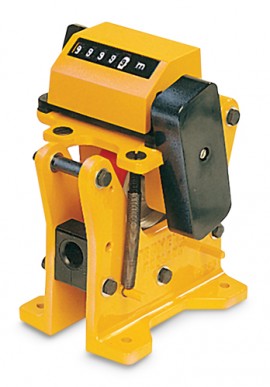

Perform a number of tasks with the Trumeter 2630-132FB Cable/Wire/Rope Measuring Machine. This measurer is the perfect tool for batching wire, laying cable, retail dispensing and more. Its durable cast aluminum and hardened steel construction can stand up to even the harshest conditions. Plus, you can interface this measurer to a data processing system, simplifying your work and saving you time.
Features
Applications
| Unit of Measurement | Feet and inches |
| Material Travel | Away from operator |
| Encoder | No |
| Counter Type | Trumeter 3602 |
| Cable Diameter Range | 0.0197 to 0.59" (0.5 to 15 mm) |
| Measuring Wheel Circumference | 9.84" (250 mm) |
| Maximum Speed of Travel | 4,921'/minute (1,500 m/minute) or 3,000 counts/minute, whichever lower |
| Structure Material | Heavy-duty cast aluminum |
| Guide Material | Hardened steel |
| Measuring Wheel Cover | Polyurethane |
| Product Length | 18.35" (466 mm) diameter |
| Product Width | 11.02" (280 mm) |
| Product Height | 10.24" (260 mm) |
| Product Weight | 6.6 lbs (3 kg) |
