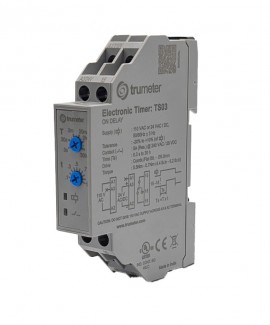

Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail

Model: TS03 | UPC: 5061089360220

Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail-

Downloads: datasheet manual

More Trumeter Products

Ask an Expert

Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail

Model: TS03 | UPC: 5061089360220

Compact DIN-rail ON-delay timer relay with dual supply (110 VAC or 24 VAC/DC) for delayed start of motors, contactors, and control loads. Features 1 changeover (C/O) relay output for flexible automation switching.

Compact DIN-rail ON-delay timer relay with dual supply (110 VAC or 24 VAC/DC) for delayed start of motors, contactors, and control loads. Features 1 changeover (C/O) relay output for flexible automation switching.

Sale Price $20.05 USD
Regular Price $25.06 USD
Availability 2 to 3 Weeks
Quantity

Trumeter TS03 Offers

Features

  • Ultra-Compact Design: Less than 19mm wide—perfect for tight spaces
  • Versatile Timing Functions: ON Delay, Signal OFF Delay, Star Delta, Multifunction, and Asymmetric models
  • Flexible Timing Ranges: Choose from 0.3s to 30h, 3s to 120s, or 0.1s to 100h
  • Reliable Switching: Integrated relay output for dependable operation
  • Energy Efficient: Low power consumption (5 VA to 10 VA)
  • LED Status Indicators: Clear visibility for power and relay activity
  • Durable Construction: Flame-retardant UL94-V0 housing for safety
  • Wide Operating Range: Performs in temperatures from 14 to 131°F (-10 to 55°C)

Applications

  • HVAC systems
  • Lighting control
  • Industrial equipment
  • Generator protection
  • Traffic signal controls
  • Marine
  • Industrial automation
  • Pump control

Trumeter TS03 Specifications

Time Type/Mode ON-Delay
Supply Voltage 110 V AC / 24VAC/DC
Supply Variation -15% to +10% (of supply voltage)
Frequency 50/60 Hz
Power Consumption (Maximum) 8 VA
Timing Range 0.3 s to 30 h
Reset Time 150 ms (maximum)
Repeat Accuracy ±1%
Relay Output 1 C/O
Contact Rating 5 A at 240 VAC / 30 VDC (Resistive)
Electrical Life 1x105
Mechanical Life 5x106
Utilization Category (AC-15) Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
Utilization Category (DC-13) Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A
Operating Temperature 14 to 131°F (-10 to 55°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Humidity (Non Condensing) 95% (Rh)
LED Indication GREEN ➡ Power ON | RED ➡ Relay ON
Enclosure Flame Retardant UL 94-V0
Mounting Base / DIN Rail
Certification cULus, CE
Degree of Protection IP 20 for terminals, IP30 for enclosure, IP40 for front side
Dimension (W x H x D) 0.69 x 2.56 x 3.54" (17.5 x 65 x 90 mm)
Weight 2.65 oz (75 g)
Click here for complete specifications on the Trumeter TS03

What's included with the Trumeter TS03

  • Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail
datasheet for the Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail manual for the Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail

Ask a question about Trumeter TS Series Timer Switch Relay, 110 V AC and 24 V AC/DC, ON-delay, 1 C/O, DIN rail

Customer Reviews for the Trumeter TS03
