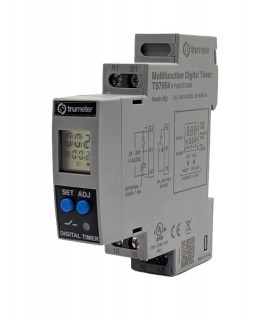

Trumeter TS7954 Digital Timer Switch Relay, 24 to 240 V AC/DC, 8 functions, 1x C/O, DIN rail

Model: TS7954 | UPC: 5061089360299

Trumeter TS7954 Digital Timer Switch Relay, 24 to 240 V AC/DC, 8 functions, 1x C/O, DIN rail-

Downloads: datasheet manual

More Trumeter Products

Ask an Expert

Trumeter TS7954 Digital Timer Switch Relay, 24 to 240 V AC/DC, 8 functions, 1x C/O, DIN rail

Model: TS7954 | UPC: 5061089360299

DIN-rail digital time relay with a wide timing range and key-lockable settings to prevent tampering. 24 to 240 V AC/DC, 8 timing functions, 1 changeover (C/O) output.

DIN-rail digital time relay with a wide timing range and key-lockable settings to prevent tampering. 24 to 240 V AC/DC, 8 timing functions, 1 changeover (C/O) output.

Sale Price $41.35 USD
Regular Price $51.69 USD
Availability 2 to 3 Weeks
Quantity

Trumeter TS7954 Offers

Features

  • LCD Display: 3 digits and easy-to-read run time indication
  • Ultra-Compact Design: Only 18mm wide—perfect for tight spaces
  • Easy to Program: Front buttons and up to 18 selectable timing functions
  • Wide Timing Range: from 0.1 seconds to 999 hours
  • Reliable Switching: Integrated relay output for dependable operation
  • Energy Efficient: Low power consumption (5 VA to 10 VA)
  • Durable Construction: Flame-retardant UL94-V0 housing for safety
  • Wide Operating Range: Performs in temperatures from 14 to 131°F (-10 to 55°C)
  • Tamper Proof: Key lock feature to prevent change of settings

Applications

  • Industrial automation
  • HVAC systems
  • Lighting control
  • Pump control

Trumeter TS7954 Specifications

Supply Voltage 24 to 240 VAC/DC
Supply Variation -15% to +10% (of supply voltage)
Frequency 50/60 Hz
Power Consumption (maximum) 0.5 VA (at 24/48 VAC), 4 VA (at 110 to 265 VAC/DC)
Timing Range 0.1 s to 999 h
Reset Time 200 ms (maximum)
Repeat Accuracy ±0.5%
Relay Output 1x C/O (Form C)
Contact Rating 8A at 240 VAC / 24 VDC (Resistive)
Electrical Life 1x105
Mechanical Life 2x107
Utilization Category (AC-15) Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A
Utilization Category (DC-13) Rated Voltage (Ue): 125/250 V, Rated Current (Ie): 0.22/0.1 A
Operating Temperature 14 to 131°F (-10 to +55°C)
Storage Temperature -4 to 149°F (-20 to +65°C)
Humidity (Non Condensing) 95% (Rh)
LED Indication Red LED ➜ Relay ON
Enclosure Flame Retardant UL 94-V0
Mounting DIN Rail
Certification cULus, CE
Degree of Protection IP 20 for terminals, IP30 for enclosure, IP40 for front side
Operating Modes ON Delay
Repeat Cycle OFF/ON
Repeat Cycle ON/OFF
Signal ON/OFF
Signal OFF Delay
Interval
Signal OFF/ON
One Shot Output
Dimension (W x H x D) 0.71 x 3.35 x 2.99" (18 x 85 x 76 mm)
Weight (unpacked) Approx. 3 oz (85 g)
Click here for complete specifications on the Trumeter TS7954
