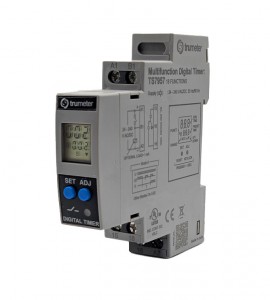

DIN-rail digital time relay with wide timing range and key-lock. 24 to 240 V AC/DC, 18 timing functions, 1 changeover (C/O) output.
DIN-rail digital time relay with wide timing range and key-lock. 24 to 240 V AC/DC, 18 timing functions, 1 changeover (C/O) output.
Features
Applications
| Supply Voltage | 24 to 240 VAC/DC |
| Supply Variation | -15% to +10% (of supply voltage) |
| Frequency | 50/60 Hz |
| Power Consumption (maximum) | 0.5 VA (at 24/48 VAC), 4 VA (at 110 to 265 VAC/DC) |
| Timing Range | 0.1 s to 999 h |
| Reset Time | 200 ms (maximum) |
| Repeat Accuracy | ±0.5% |
| Relay Output | 1x C/O (Form C) |
| Contact Rating | 8A at 240 VAC / 24 VDC (Resistive) |
| Electrical Life | 1x105 |
| Mechanical Life | 2x107 |
| Utilization Category (AC-15) | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A |
| Utilization Category (DC-13) | Rated Voltage (Ue): 125/250 V, Rated Current (Ie): 0.22/0.1 A |
| Operating Temperature | 14 to 131°F (-10 to +55°C) |
| Storage Temperature | -4 to 149°F (-20 to +65°C) |
| Humidity (Non Condensing) | 95% (Rh) |
| LED Indication | Red LED ➜ Relay ON |
| Enclosure | Flame Retardant UL 94-V0 |
| Mounting | DIN Rail |
| Certification | cULus, CE |
| Degree of Protection | IP 20 for terminals, IP30 for enclosure, IP40 for front side |
| Operating Modes | ON Delay Repeat Cycle OFF/ON Repeat Cycle ON/OFF Impulse on Power Up Accumulative Delay on Signal Accumulative Delay on Inverted Signal Accumulative Impulse on Signal Signal ON Delay Inverted Signal ON Delay Signal OFF Delay Impulse ON/OFF Signal OFF/ON Leading Edge Impulse 1 Leading Edge Impulse 2 Trailing Edge Impulse 1 Trailing Edge Impulse 2 Delayed Impulse Inverted Signal ON Delay (Type 2) |
| Dimension (W x H x D) | 0.71 x 3.35 x 2.99" (18 x 85 x 76 mm) |
| Weight (unpacked) Approx. | 3 oz (85 g) |
