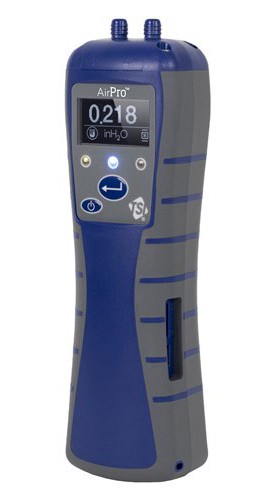

Performance beyond measure. This rugged, compact and configurable micromanometer is a high performing component of the AirPro® Solutions platform. To be used in conjunction with the AirPro® Mobile Application Software, plug-and-play measurement probes and user defined feature sets. Includes a perpetual Professional Full Feature Software License.
Performance beyond measure. This rugged, compact and configurable micromanometer is a high performing component of the AirPro® Solutions platform. To be used in conjunction with the AirPro® Mobile Application Software, plug-and-play measurement probes and user defined feature sets. Includes a perpetual Professional Full Feature Software License.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
No longer be required to renew their subscriptions on a yearly basis. With the AirPro Mobile Full Software License (perpetual) redemption code included with the meter purchase, you no longer need to get approval for subscription purchases. This is included as no cost, it is simply included as part of the solution.
Trusted Performance
AirPro® Instruments are the latest iteration of trusted, high performance TSI ventilation test instruments, designed and manufactured by the leader in the industry. Don't get caught compromising your credibility, or the health and safety of others. Trust TSI as your critical measurements solution provider.
Manage Your Devices
Log into My TSI to manage user accounts, instruments and smart devices, with access to your latest calibration certificates.
Share Your Data
With the touch of a button, AirPro® Mobile allows you to quickly share measurements, photos and comments that can easily be imported into reports.
Seamless Connectivity
Connect up to six instruments simultaneously to one smart device, for remote measurement display and data logging. When your mobile device goes out of range, it will automatically re-connect to the instruments once you're back in range.
Boost Efficiency
Don't waste time writing down numbers and performing manual calculations. Let AirPro® Mobile do it for you - Minimize errors, perform duct traverse workflows, and perform unit conversions.
Protect Your Investment
Protect your investment with flexible service offerings and extended calibration contracts, ultimately saving costs and eliminating downtime.
Optimize productivity by offering unmatched accuracy, seamless data logging, workflows, and a user-friendly interface for fast, intuitive operation. With the AirPro® Mobile App, you can get the feature set you need to get the job done right. And, with intelligent probes, you can minimize downtime during calibration - True Performance Beyond Measure.
Includes a barometric pressure sensor for air density correction, integrated display, two buttons (power and save) and a rechargeable lithium-ion battery; which can be charged via USB.
Features
Applications

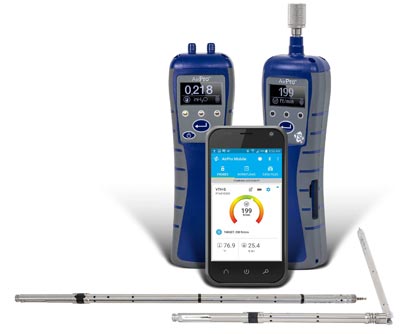

AirPro® Mobile
Developed by TSI to be used in conjunction with AirPro® meters, probes and feature sets and allows for real-time measurement and calculations to be displayed and logged on handheld devices running iOS or Android operating systems.
Up to six instruments can be simultaneously connected to one smart device via AirPro® Mobile. It allows you to quickly share measurements, photos and comments associated with test data. A built-in duct traverse workflow boosts efficiency and minimizes errors by automatically calculating insertion depths and mapping measurements for both equal area and Log Tchebycheff duct flow measurements.
AirPro® Mobile Features
| Static / Differential Pressure | |
| Range | -15 to 15" H2O (-28.0 to 28.0 mm Hg, -3735 to 3735 Pa) |
| Accuracy | ±1% of reading ±0.005" H2O (±0.01 mm Hg, ±1 Pa) |
| Resolution | 0.001" H2O (0.1 Pa, 0.01 mm Hg) |
| Pitot Probe Velocity | |
| Range | 250 to 15500 ft/min (1.27 to 78.7 m/s) |
| Accuracy | ±1.5% at 2000 ft/min (10.16 m/s) |
| Resolution | 1 ft/min (0.1 m/s) |
| Barometric | |
| Range | 20.36 to 36.65" Hg (517.1 to 930.9 mm Hg) |
| Accuracy | ±2% of reading |
| General Specifications | |
| Operating Temperature Range | 40 to 113°F (5 to 45°C) |
| Operating Storage Range | -4 to 140°F (-20 to 60°C) |
| Display interface | Organic light-emitting diode (OLED) 0.4" (10 mm) digit height |
| External Meter Dimensions | 2.1 x 7.1 x 1.6" (53 x 181 x 40 mm) |
| Meter Weight with Batteries | 0.45 lbs (0.20 kg) |
| Input | 90 to 240 VAC, 50 to 60 Hz |
| Output | 5 VDC, 2A |
| Battery Life | 32+ Hours |
