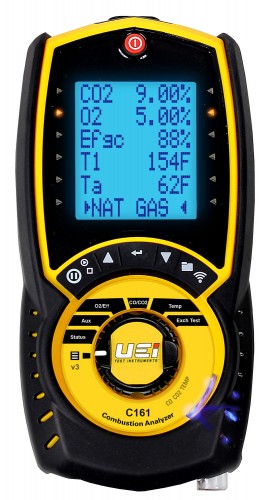

UEi C161 Residential Combustion Analyzer with direct CO2 measurement, 32 to 1112°F, 2000 ppm

Model: C161 | UPC: 053533508338

Ideal for combustion analysis, this flue gas analyzer offers essential information for installing and maintaining gas appliances, direct CO2 measurement, and features a 30-second start-up time. In addition, it is easy to use with a rugged design and has multiple sensor protections, altitude compensation, and a heat exchanger test.

Ideal for combustion analysis, this flue gas analyzer offers essential information for installing and maintaining gas appliances, direct CO2 measurement, and features a 30-second start-up time. In addition, it is easy to use with a rugged design and has multiple sensor protections, altitude compensation, and a heat exchanger test.

Sale Price $593.26 USD
Regular Price $697.95 USD
Availability 1 Week
Quantity

Recommended Accessories

UEi 16646 Thermal Paper for Select Infrared Thermal Printers-

UEi 16646 Thermal Paper for Select Infrared Thermal Printers

16646

UEi AC522 Soft Carrying Case-

UEi AC522 Soft Carrying Case

AC522

UEi CP2 Flue Gas Probe for C series analyzers-

UEi CP2 Flue Gas Probe for C series analyzers

CP2

UEi SM11105 Combustion Analyzer Inlet Tube for C160 series-

UEi SM11105 Combustion Analyzer Inlet Tube for C160 series

SM11105

UEi SM50515 C160 Series Water Trap for combustion analyzers-

UEi SM50515 C160 Series Water Trap for combustion analyzers

SM50515

UEi IRP-2 Infrared Thermal Printer-

UEi IRP-2 Infrared Thermal Printer

IRP-2

UEi C161 Offers

Features

  • Large 6-line backlit display
  • Heat exchanger test
  • Two levels of sensor protection
  • NOx filtered CO sensor
  • Low flow detection to protect reading accuracy
  • High altitude compensation
  • Temperature differential with K-type probe inputs
  • Protective water trap
  • Print to optional printer (sold separately)
  • Eight pre-programmed fuels
  • Protective rubber boot with magnet
  • DMM-style rotary dial

Functions

  • Measures: CO, CO2, flue temperature, inlet temperature
  • Calculates: O2, differential temperature, efficiency (net and gross), excess air

Applications

  • Residential combustion analysis
  • Installing and maintaining gas applicances

UEi C161 Specifications

Temperature Measurement
Flue Temperature Range: 32 to 1112°F (0 to 600°C)
Resolution: 0.1°F (0.1°C)
Accuracy: ±(0.3% rdg +3.6°F [2°C])
Inlet Temperature (Internal Sensor) Range: 32 to 122°F (0 to 50°C)
Resolution: 0.1°F (0.1°C)
Accuracy: ±2°F (1°C)
Inlet Temperature (External Sensor) Range: 32 to 1112°F (0 to 600°C)
Resolution: 0.2° (0.1°C)
Accuracy: ±1.0°F (0.5°C)
Flue Gas Measurement
Carbon Monoxide Range: 0 to 2000 ppm
Resolution: 1 ppm
Accuracy: ±3 ppm or ±5% rdg (whichever is greater)
Carbon Dioxide Range: 0 to 20%
Resolution: 0.1%
Accuracy: ±0.3% volume
Calculations
Oxygen Range: 0 to 21%
Resolution: 0.1%
Accuracy: ±0.3% volume
Efficiency (Net or Gross) Range: 0 to 99.9%
Resolution: 0.1%
Accuracy: ±1% rdg
Excess Air Range: 0 to 119.9%
Resolution: 0.1%
Accuracy: ±0.2% rdg
General Specifications
Pre-Programmed Fuels Natural gas, propane, LPG, light oil, heavy oil, bio oil, pellets
Environmental Conditions Operating temperature: 32 to 113°F (0 to 45°C)
Storage temperature: 0 to 113°F (-18 to 50°C)
Humidity: 15 to 90% RH
Power Supply Rechargeable batteries, USB charging
Battery life: >8 hours (continuous with pump on)
Certification TUV-tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BimSchV)
Dimensions 8.54 x 4.18 x 1.86" (216.92 x 106.17 x 47.24 mm)
Weight 1.51 lbs (0.68 kg)
Click here for complete specifications on the UEi C161

What's included with the UEi C161

  • Combustion Analyzer
  • Flue Gas Probe
  • 3 x AA Rechargeable Batteries
  • USB Charging Cable
  • Quick Start Guide
  • 10-Year Warranty

Click on a category to view a selection of compatible accessories with the UEi C161 Residential Combustion Analyzer with direct CO2 measurement, 32 to 1112°F, 2000 ppm.

UEi AC509 Hard Carrying Case AC509
UEi AC509 hard sided blow-molded case for the eagle & eagle x combustion analyzers protective compartment for analyzer, printer and accessories flue probe storage separated from analyzer to protect the instrument size 19"w x 14"h x 3-1/2"d. It can work with C125, C127, C155, C157.



UEi AC522 Soft Carrying Case AC522
For use with combustion kits as well as C series analyzers, the soft carrying case features an inside velcro pocket and a carrying strap.



UEi 16646PACK Thermal Paper 16646PACK
UEi 16646PACK is a replacement printer paper. Works with KMIRP2.



UEi 16646 Thermal Paper for Select Infrared Thermal Printers 16646
Place this thermal paper into your compatible infrared thermal printer and begin recording data.



UEi IRP-2 Infrared Thermal Printer IRP-2
Easy to load Infrared printer for combustion analysers with IR printer capability1-Year limited warranty



UEi CP2 Flue Gas Probe for C series analyzers CP2
The gas probe can be used with C160 combustion series analyzers. The probe offers highly accurate results.



UEi SM11105 Combustion Analyzer Inlet Tube for C160 series SM11105
The tube slots directly into the combustion analyzer. It provides reliable access for gases to flow through and be measured.



UEi SM50515 C160 Series Water Trap for combustion analyzers SM50515
The water trap is a replacement part for select combustion analyzers. It fits models C161, C162, C163 and C164.
