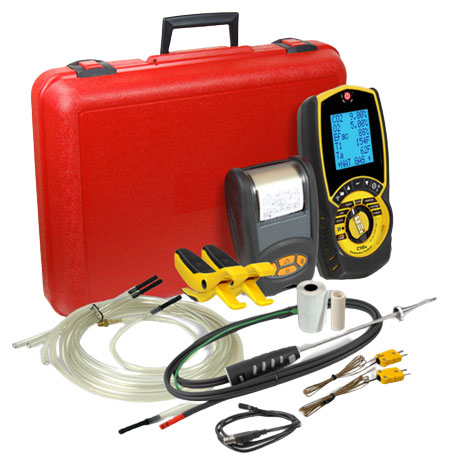

Ideal for combustion analysis, this flue gas analyzer with NOx sensor offers essential information for installing and maintaining gas appliances and the LINK feature connects wireless probes. This kit includes a flue probe, wireless pipe clamp probes, K-type thermocouples, and an IR thermal printer.
Ideal for combustion analysis, this flue gas analyzer with NOx sensor offers essential information for installing and maintaining gas appliances and the LINK feature connects wireless probes. This kit includes a flue probe, wireless pipe clamp probes, K-type thermocouples, and an IR thermal printer.
Features
Functions
Applications
| Temperature Measurement | |
| Flue Temperature | Range: 32 to 1112°F (0 to 600°C) Resolution: 0.1°F (0.1°C) Accuracy: ±(0.3% rdg +3.6°F [2°C]) |
| Inlet Temperature (Internal Sensor) | Range: 32 to 122°F (0 to 50°C) Resolution: 0.1°F (0.1°C) Accuracy: +1.8°C +0.3% rdg |
| Inlet Temperature (External Sensor) | Range: 32 to 1112°F (0 to 600°C) Resolution: 0.1° (0.1°C) Accuracy: +3.6°F +0.3% rdg |
| Flue Gas Measurement | |
| Oxygen | Range: 0 to 21% Resolution: 0.1% Accuracy: +0.3% volume |
| Carbon Monoxide | Range: 0 to 2000 ppm; 2000 to 9999 ppm; above 9999 pm Resolution: 1 ppm Accuracy: ±3 ppm or ±5% rdg; ±10% of rdg; unspecified |
| Carbon Dioxide | Range: 0 to 20% Resolution: 0.1% Accuracy: 0.3% rdg |
| Efficiency (Net or Gross) | Range: 0 to 99.9% Resolution: 0.1% Accuracy: +1% rdg |
| Efficiency High (C) | Range: 0 to 119.9% Resolution: 0.1% Accuracy: +1% rdg |
| Excess Air | Range: 0 to 250% Resolution: 0.1% Accuracy: +0.2% rdg |
| CO/CO2 Ratio | Range: 0 to 0.9999% Resolution: 0.0001 Accuracy: +5% rdg |
| Nitric Oxide Sensor | Range: 0 to 100 ppm; overrange to 1500 ppm Resolution: 1 ppm Accuracy: + 2 ppm <30 ppm; +5 ppm <100 ppm; +5% reading >100 ppm |
| Pressure (Differential) | |
| Range | ±80 mbar |
| Resolution | 0.1 mbar |
| Accuracy | ±0.5% FSD |
| General Specifications | |
| Pre-Programmed Fuels | Natural gas, propane, LPG, oil, heavy oil, pellets, butane |
| Environmental Conditions | Operating temperature: 32 to 112°F (0 to 45°C) Storage temperature: 0 to 120°F (-18 to 50°C) Humidity: 10 to 90% RH |
| Certification | CE Conformity, RoHS, REACH Compliant, AHRI 1260 standard, FCC |
| Dimensions | 7.87 x 1.77 x 3.5" (200 x 44.9 x 88.9 mm) |
| Weight | 1.38 lbs (0.63 kg) |
